Features：
| ●4K/60FPS | ●Startlight Camera |
| ●Built-in EIS | ●Support Gyroflow |
| ●SD card | ●FOV 160° |
| ●Dual Antennas | ●7.4V-25.2V |
Bullet Points:
- Supports 4K/60fps, ensuring that FPV embraces true 4K. Shooting stable and HD videos without unnecessary latency, bring pilots a smoother FPV experience.
- Feature starlight sensor, to improve image quality and performance in low-light scene shooting, ensuring night vision shooting and eliminating frequent camera switching.
- Built-in EIS and supports Gyroflow technology, taking you a smooth and stable video quality, to facilitate and enjoy freestyle fly.
- Comes with silicone pads for mounting the camera, ensuring stability and minimizing camera shake for perfect captures.
- Supports manual shutter and manual ISO settings, take perfect photos regardless of any lighting limits.
- The moonlight camera has a 160° FOV, providing you with a more natural and real picture for the ultimate flying experience.
- Come with ND8 filters to meet the needs of more different shooting scenes, to bring different effects to the shooting.
Q: Can moonlight vtx use other WS cameras?
A: No, but other vtx can use moonlight camera
Q: Where to download the manual?
A: You can check it on the Download Center page.
Q: How to install the Moonlight Camera (With video board) on other VTX?
A: View Moonlight Camera Installation Guide, compatible with VTX V2 Module, Mini VTX V3 Module, Mini 1s And Mini 1s Lite Module.
| Specification | |

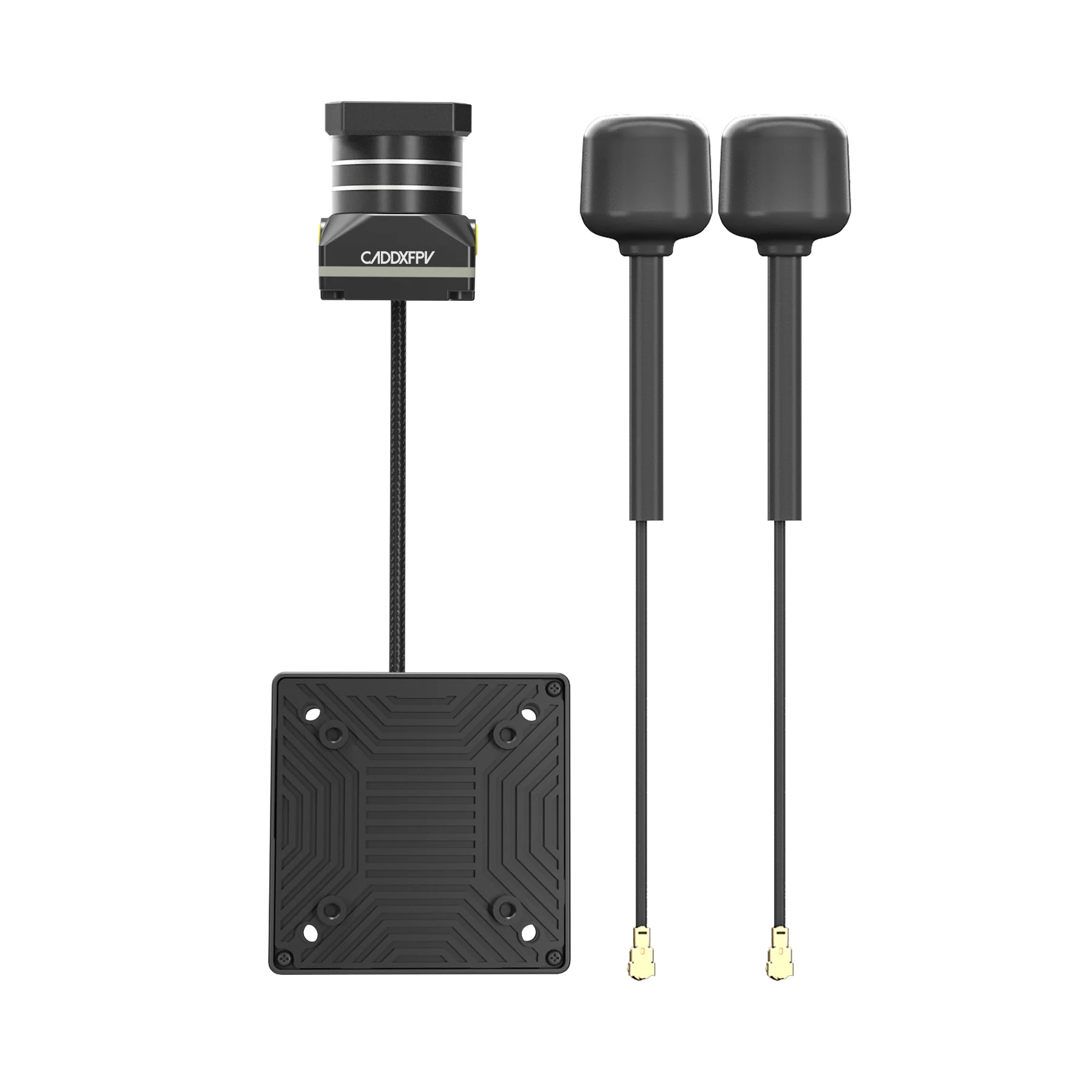

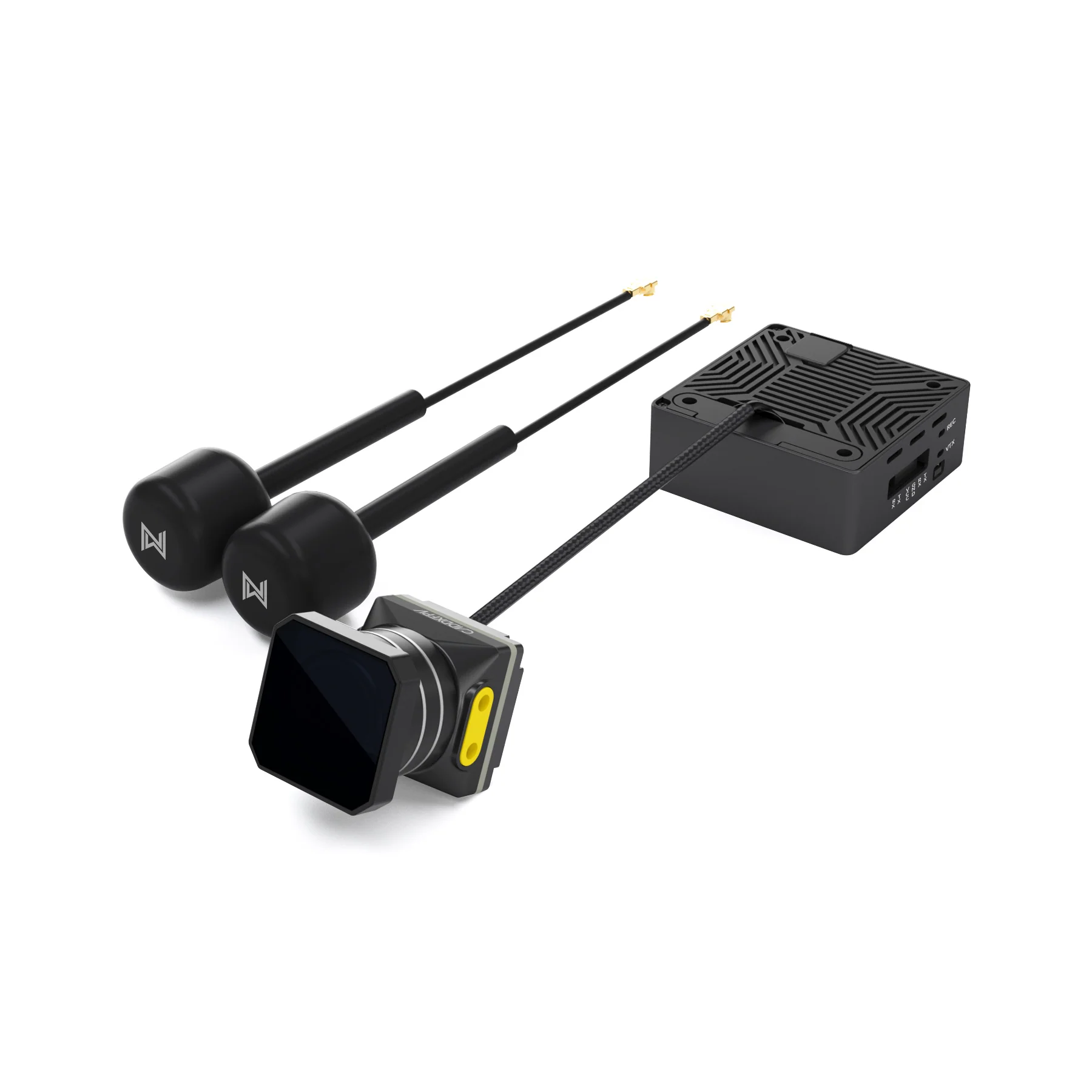

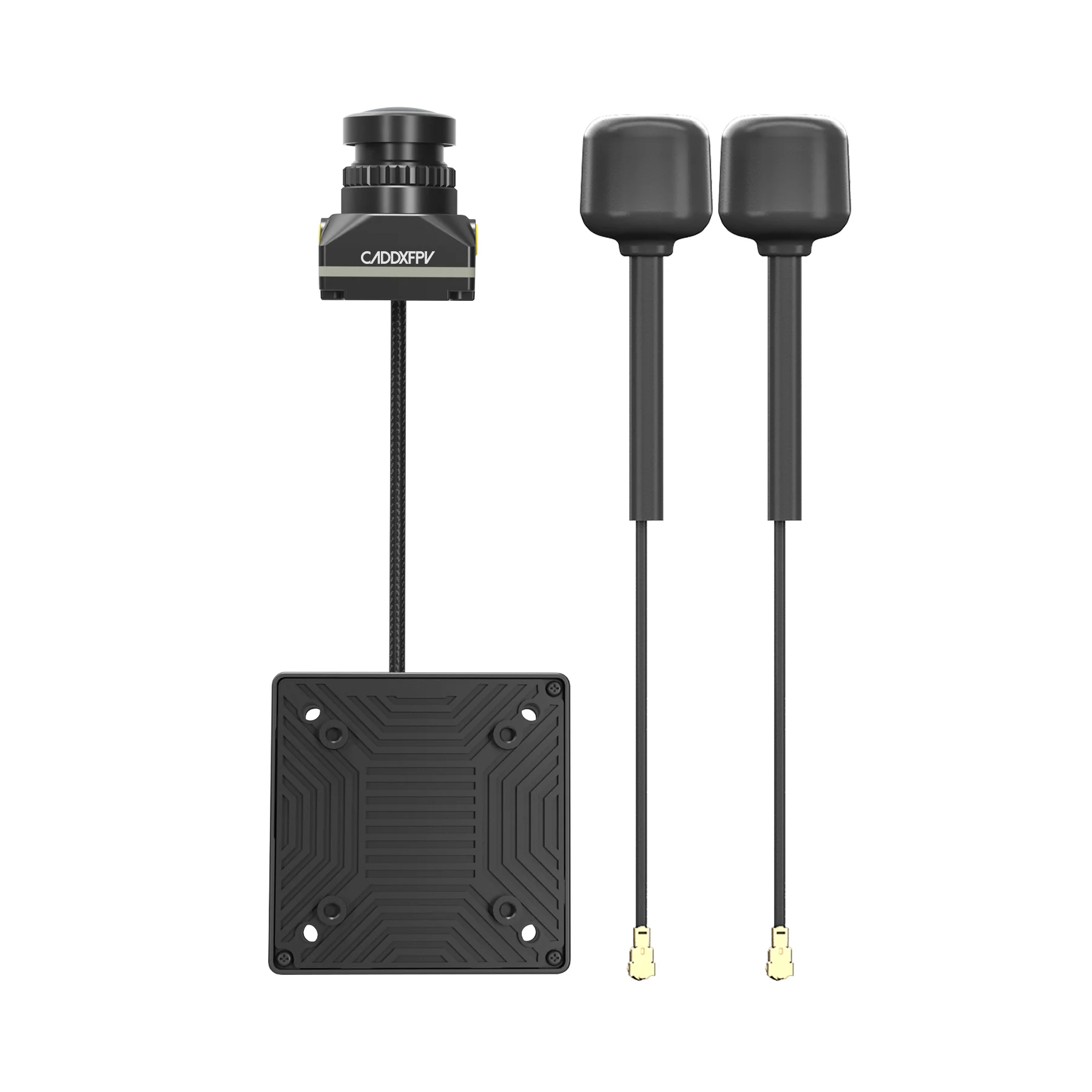

| Model | Moonlight Kit |
| Firmware name | AvatarMoonlight_Sky_X.X.X |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) | FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
| 1/O Interface | JST1.0*4(Power in)JST0.8*6(USB)，Micro SD card Slot；IPEX-1 |
| Sensor | Starlight sensor |
| FOV | Max 160° |
| Aperture | F2.1 |
| Shutter | Rolling shutter |
| ISO | 100-25600 |
| Recording resolution | 4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps |
| Max Mbps | 150Mbps |
| Video format | MP4 (H.264) |
| 3D DNR | Support |
| Gyroflow | Support |
| Built-in EIS | Support |
| Wide Power Input | 7.4V-25.2V |
| Power consumption | 12V@1.4A, 8V@2.2A |
| Memory card type | U3 MicroSD, Max 256G |
| Camera size | 19.6mm*19mm*24mm |
| VTX size | 15.3mm*34.5mm*34.5mm |
| VTX Installation hole distance | 20*20mm/25*25mm (M2) |
| Weight | Gross weight: 38.5g(Antenna not included) |
| OSD | Canvas mode |
| Latency | Average delay 22ms |
| Antenna | 2 (IPEX) |
| Specification | |

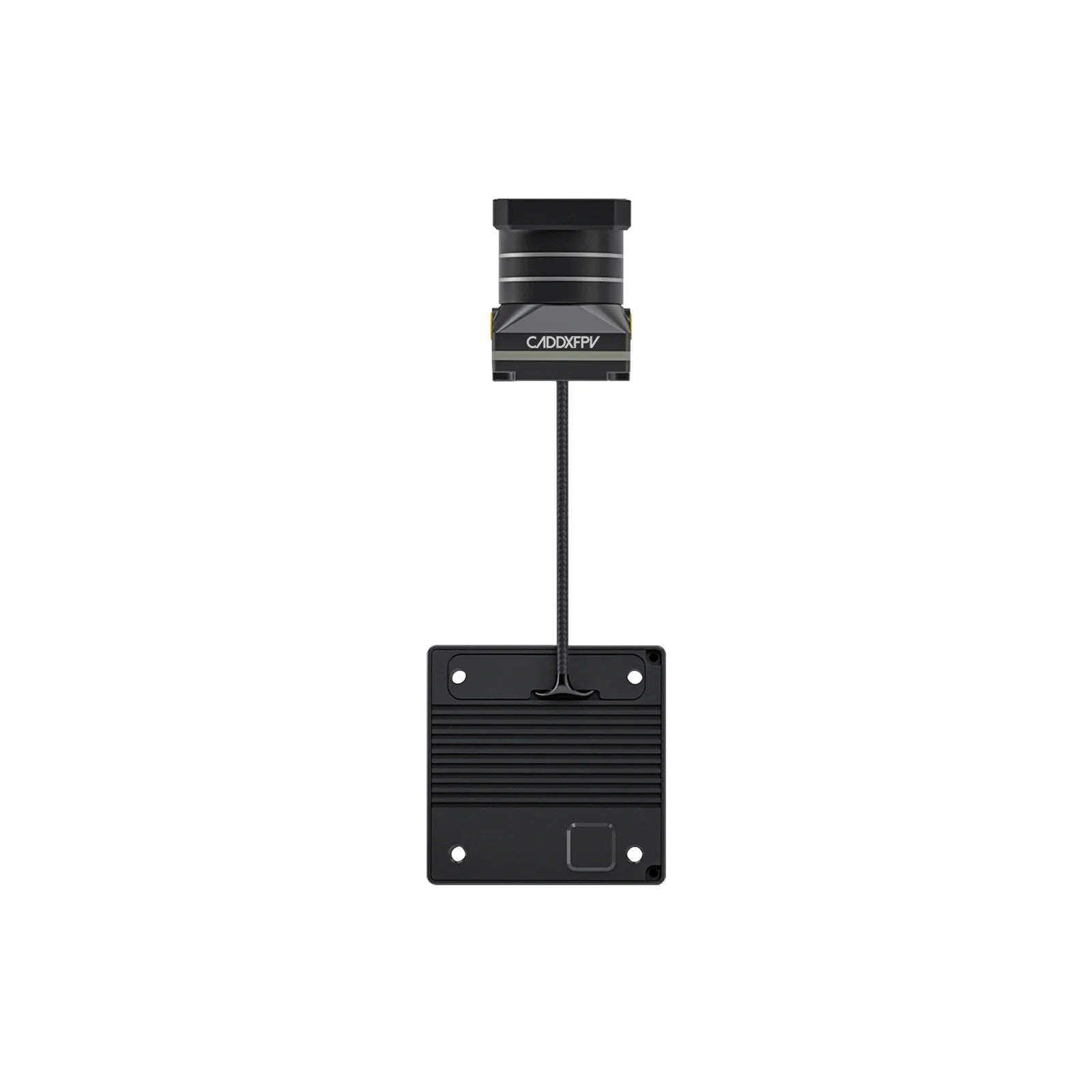

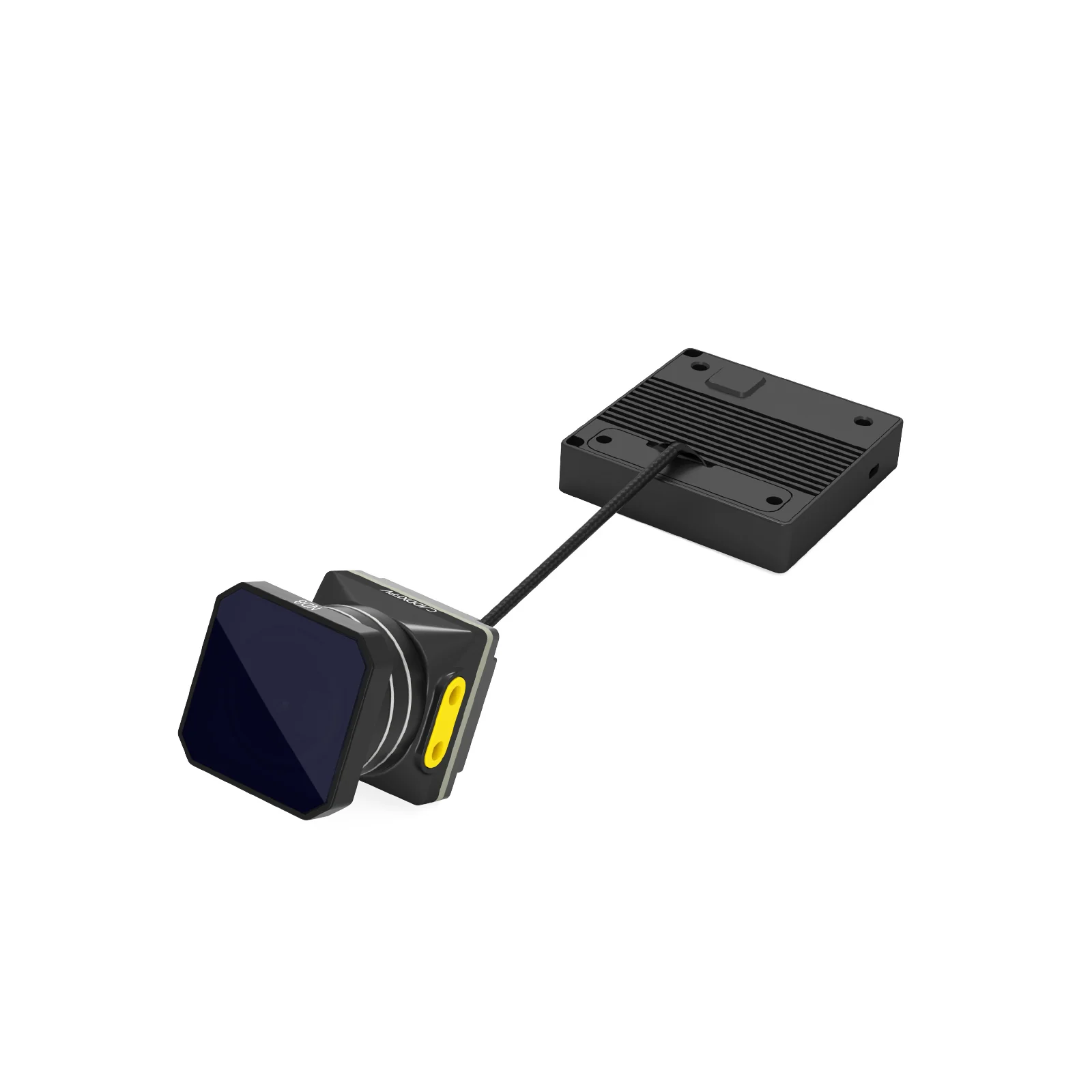

| Model | Moonlight Camera |
| Firmware name | AvatarMoonlight_Sky_X.X.X |
| Sensor | 1/1.8”Inch |
| FOV | 160° |
| Aperture | F2.1 |
| ISO | 100-25600 |
| Recording resolution | 4K@30/60fps; 2.7K@30/60fps; 1080p@100/60fps;720p@60fps |
| Max Mbps | 150Mbps |
| Video format | MP4 (H.264) |
| Shutter | Rolling shutter |
| 3D DNR | Support |
| Gyro flow | Support |
| Built-in ElS | Support |
| Wide Power input | 7.4V-25.2V |
| Memory card type | Micro SD, Max 256G |
| Power consumption | 12V@0.8+0.1A |
| Dimensions | Camera:19.5mm*19mm*24mm REC Board: 34.5mm* 34.5mm*8.3mm |
| Weight | Camera(without wire): 8.9g; Recording board: 10g |
| VTX Antenna | |
| model | avatar V2 antenna |
| Polarization | LHCP |
| Frequency range | 5600MHz-6000MHz |
| Average Gain | 1.9dBi |
| VSWR | ＜1.5 |
| Input Impedance | 50Ω |
| Interface | IPEX-1 |
| Dimension | R15 X 45mm （without cable） |
| Weight | 2g |

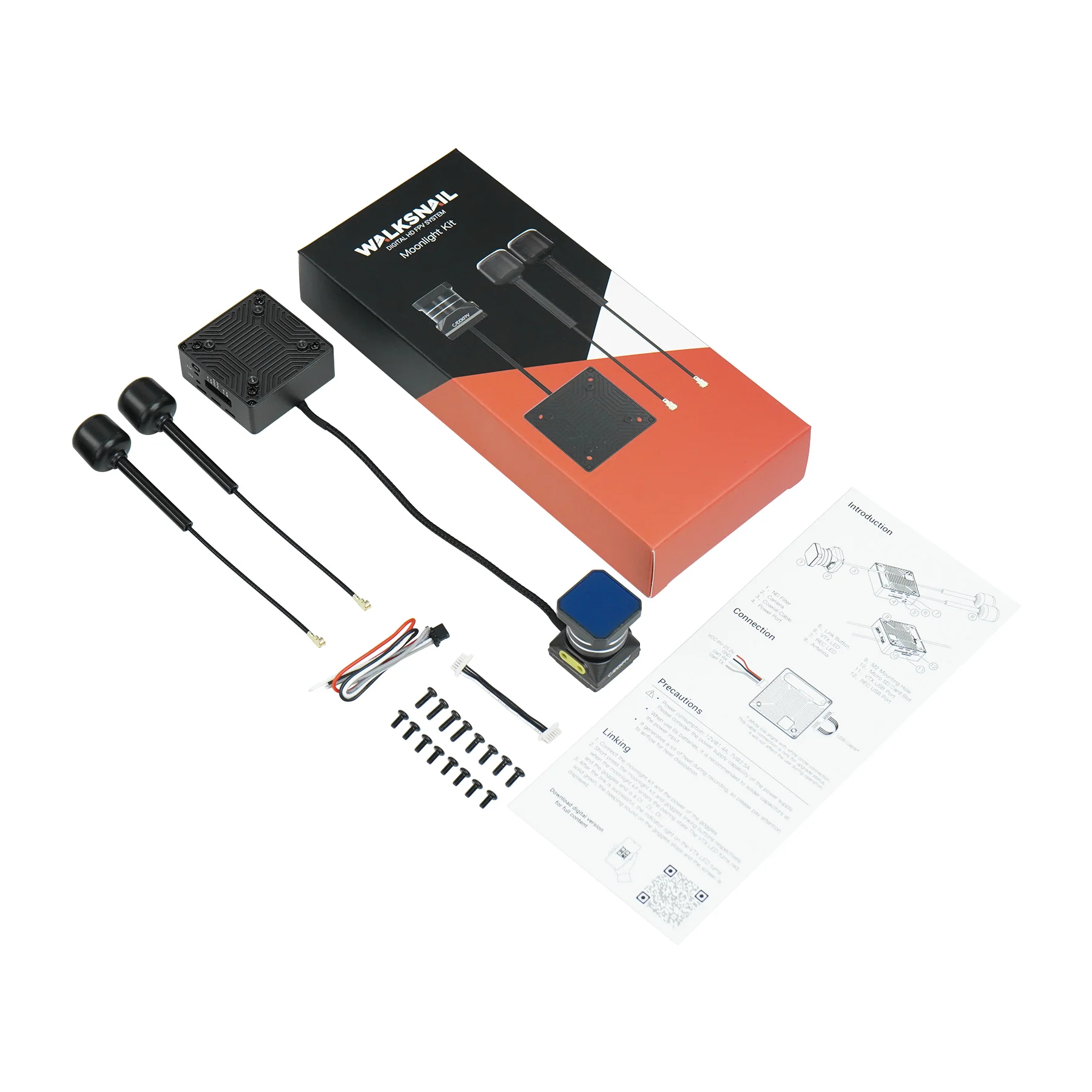

| Moonlight Kit Packing List: | |
| Walksnail Moonlight kit | X1 |
| M2*4mm round head screws | X8 |
| M2*5mm round head screws | X4 |
| M2*6mm round head screws | X4 |
| Double head 0.8mm*6PIN (4 wires) | X1 |
| 4PIN silicone cable | X1 |
| Quick Start Guide | X1 |
| Moonlight Camera Packing List: | |
| Moonlight Camera | X1 |
| M2*4mm | X4 |
| M2*5mm screw | X4 |
| M2*6mm screw | X4 |
| M2*18mm screw | X4 |
| M2 nut | X8 |
| M2*5*0.5mm washer | X4 |
| 6pin 0.8mm to 6pin 0.8mm | X1 |
| 6pin 0.8mm to 4pin 0.8mm | X1 |
| 6pin 0.8mm to 4pin 1.0mm | X1 |
