Description

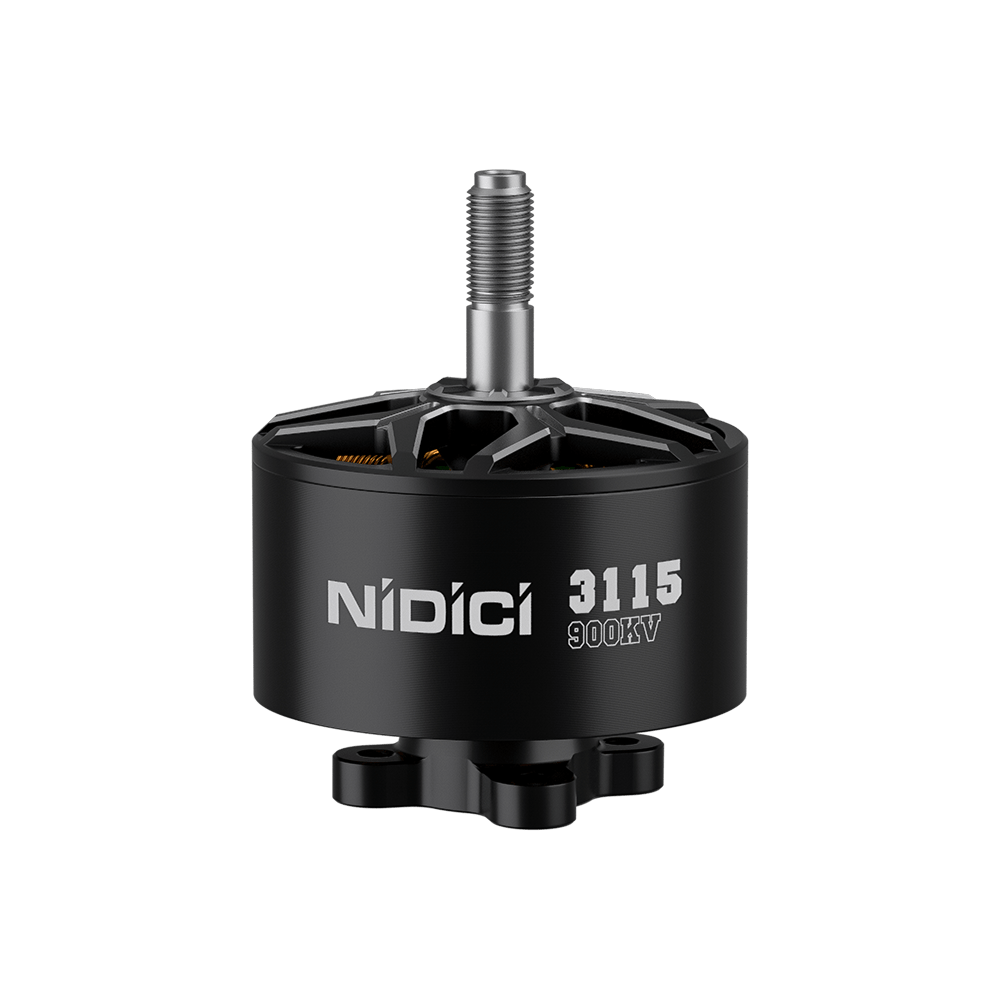

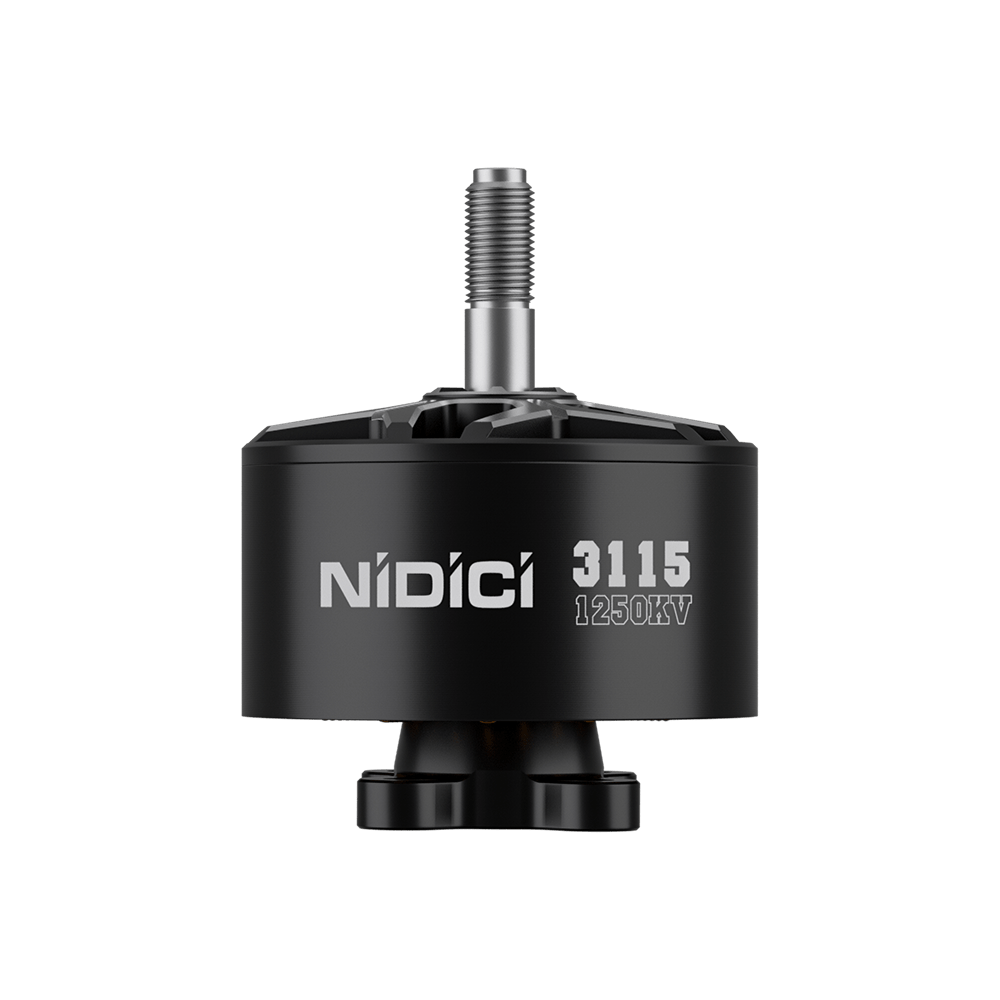

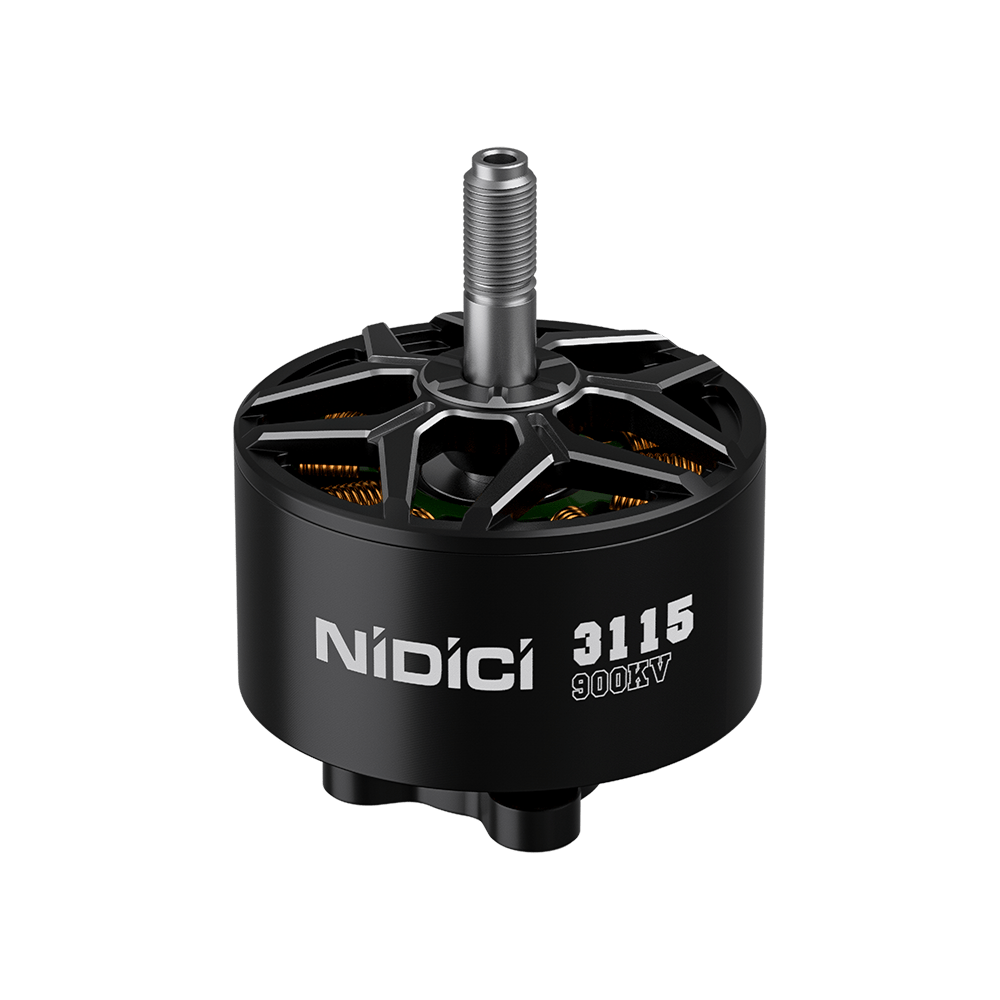

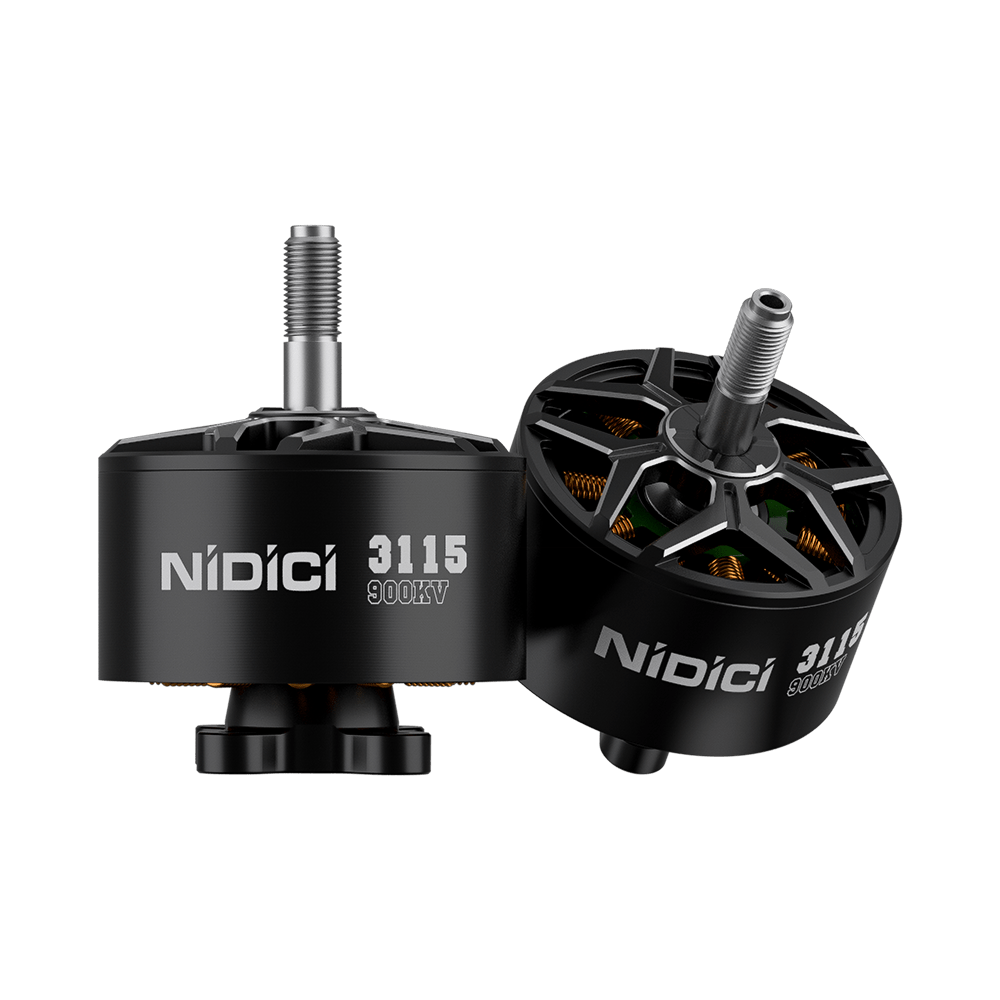

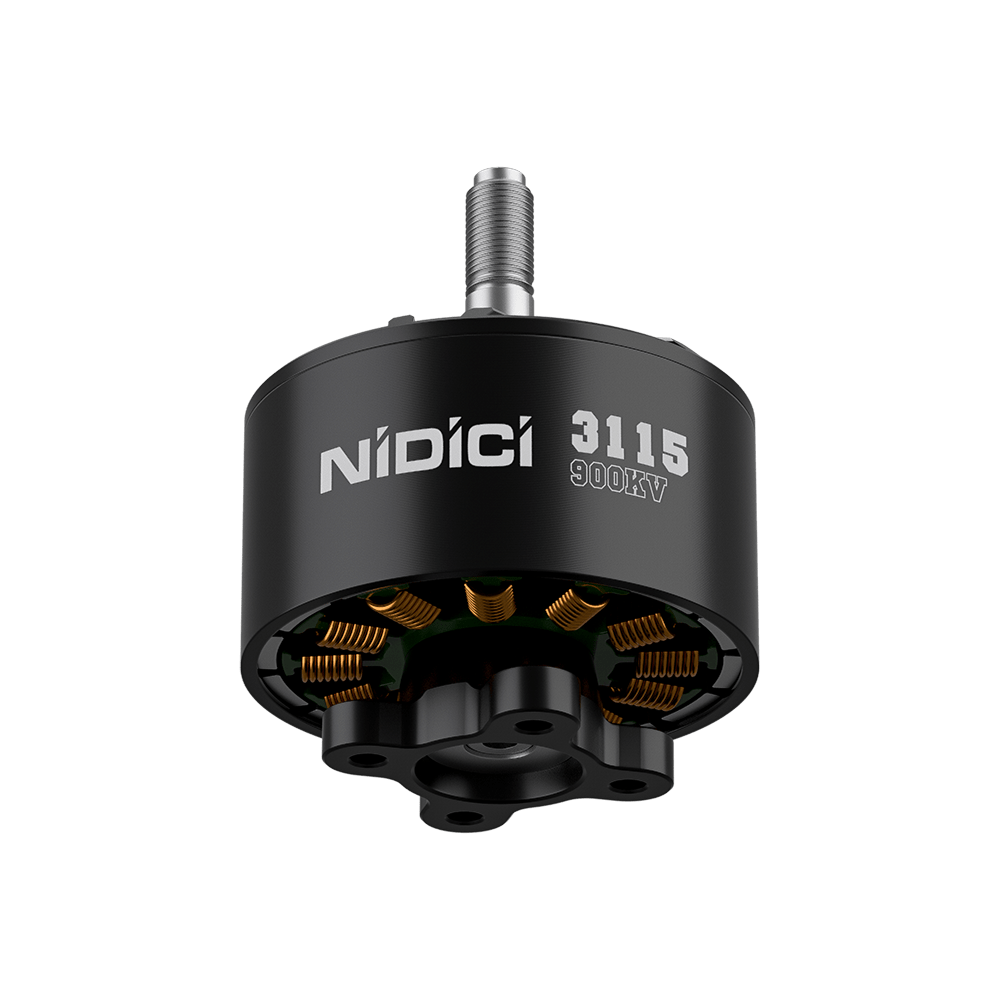

NIDICI Affordable Series Motor, is designed to provide high-quality performance at an economical price. This series combines cost-effectiveness with reliable power, making it an excellent choice for hobbyists and enthusiasts who seek value without compromising on quality.
Specifications
KV: 900KV/1250KV
Weight(included wire): 77g
Dimension: Ф36.85*46.8mm
Interphase Resistance: 51.24mΩ/24.15mΩ
Input Volts: 24V
Peak Current: 63.28A/78.86A
Max Watt: 1479.5W/1830.3W
Mounting Holes: 19*19 φ3mm
Rotor Specifications: Segmented bell
Shaft Diameter: 5mm
Shaft Protruding Length: 15.65mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Specification: φ11*5*5
Winding: Single Strand copper winding
Packing List
1 x NIDICI 3115 Brushless Motor
4 xM3*10 screws
1 x M5 Flange Nut
