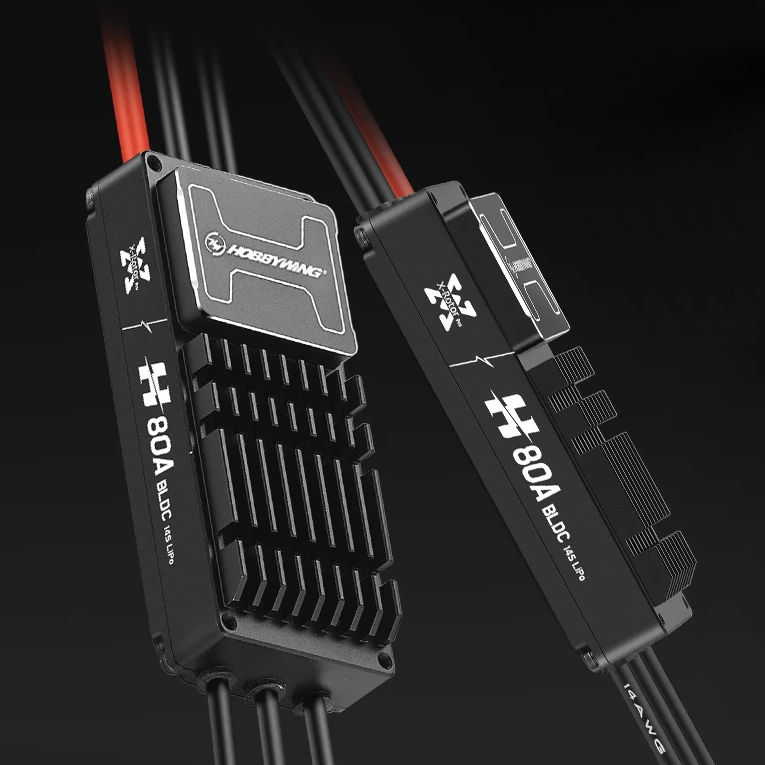

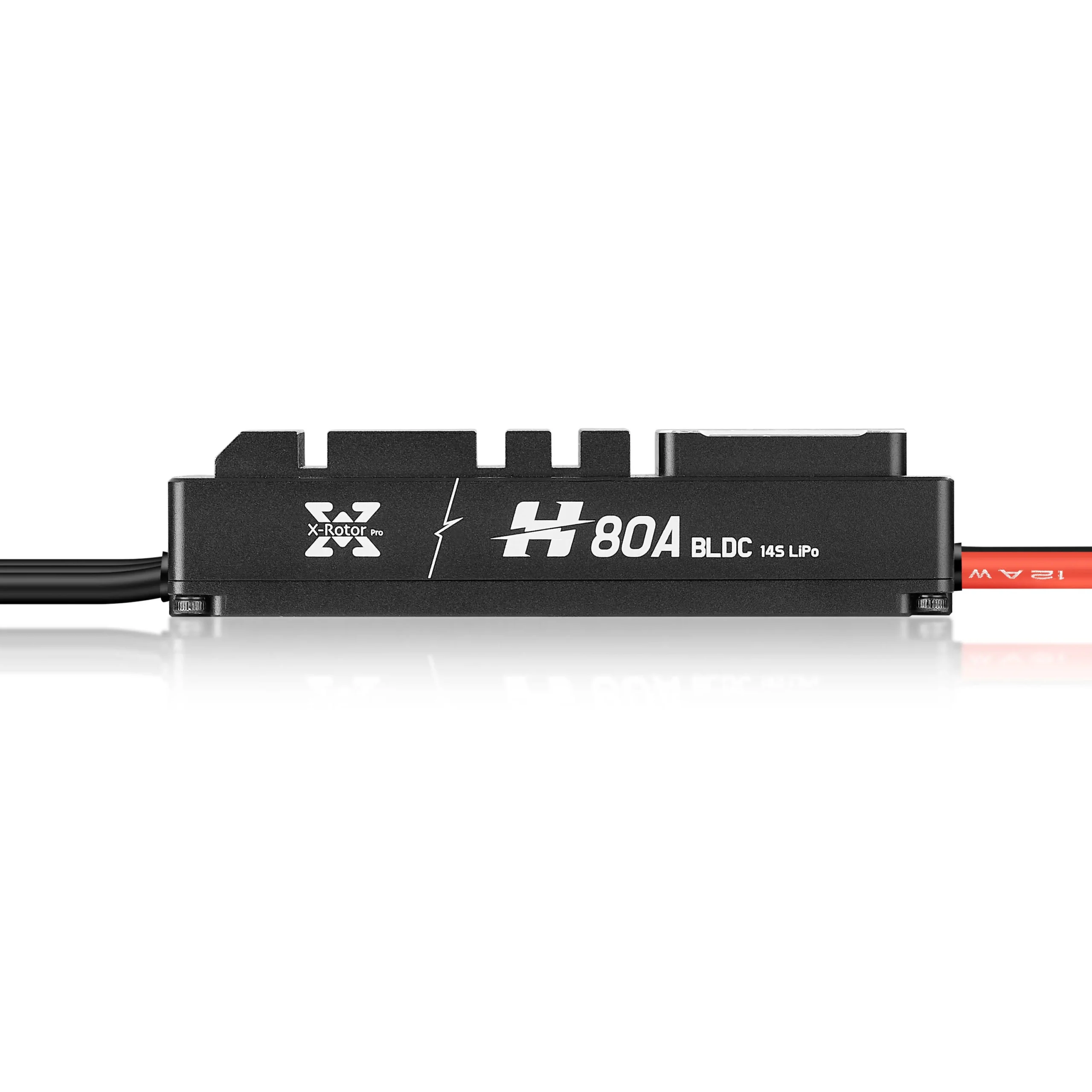

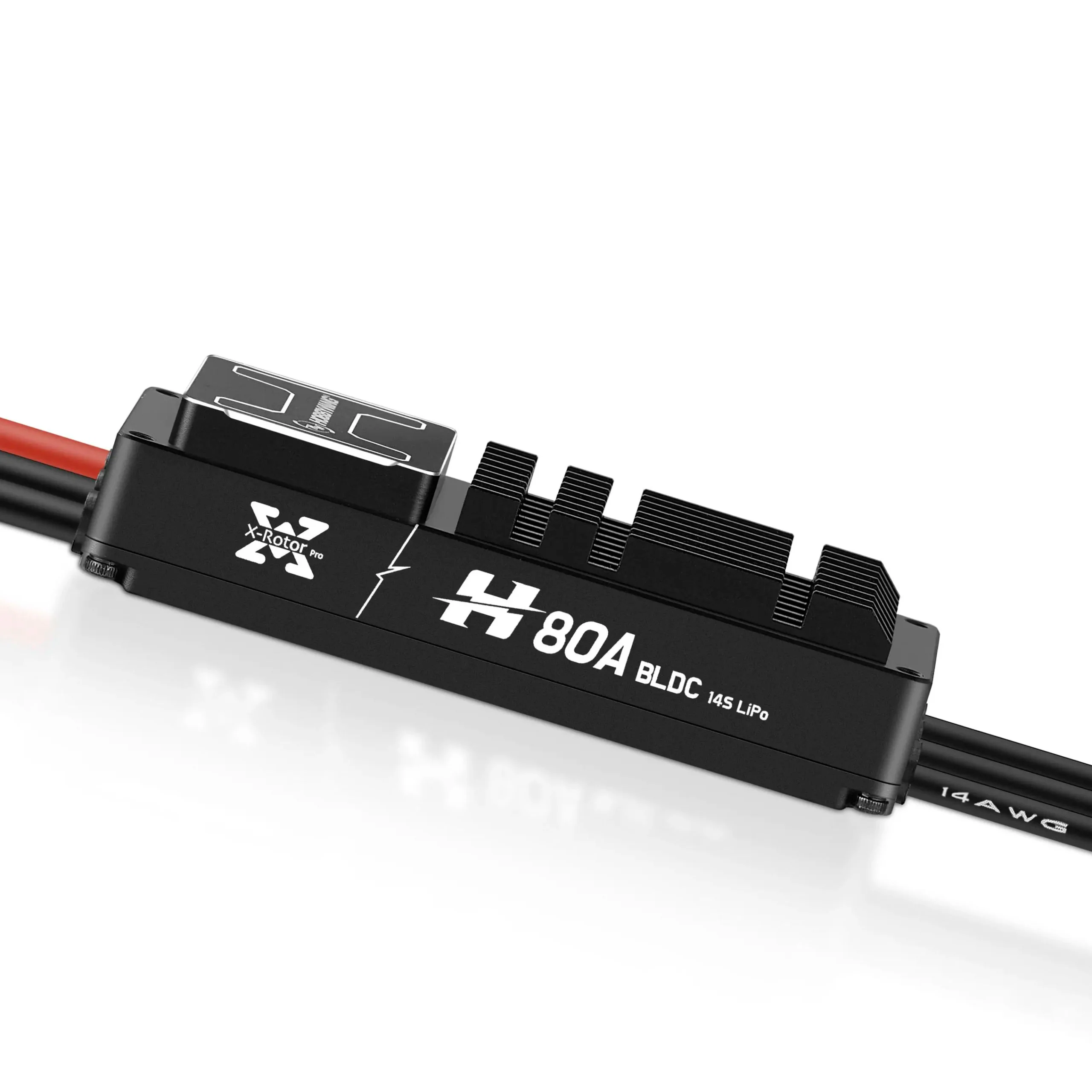

Hobbywing X-Rotor H80A 14S BLDC Compatible with More Motor CAN PWM Electronic Speed Controller ESC for Multi Rotors or Vtol Drone

Hobbywing X-Rotor H80A 14S BLDC Compatible with More Motor CAN PWM Electronic Speed Controller ESC for Multi Rotors or Vtol Drone - Image 2

Hobbywing X-Rotor H80A 14S BLDC Compatible with More Motor CAN PWM Electronic Speed Controller ESC for Multi Rotors or Vtol Drone - Image 3

Hobbywing X-Rotor H80A 14S BLDC Compatible with More Motor CAN PWM Electronic Speed Controller ESC for Multi Rotors or Vtol Drone

Name: Hobbywing X-Rotor H80A 14S BLDC Compatible with More Motor CAN PWM Electronic Speed Controller ESC for Multi Rotors or Vtol Drone
Brand: Hobbywing
SKU: 9881
Price: 15999.00 INR
Availability: InStock

₹15,999.00

IPC versions are available on pre-order. Contact us to place your pre-order.

Model

Clear

SKU: N/A Category: ESC's Tag: esc Brand: Hobbywing

Specification:

XRotor Pro H80A 14S BLDC CAD

XRotor Pro H80A 14S BLDC IPC CAD

Product Name

XRotor Pro H80A 14S BLDC / BLDC IPC

Specifications

Input Voltage	6-14S（18-63V）
Continuous Current	40A（Good heat dissipation）
Peak Current	100A （3S）
Operating Temperature	-40℃~65℃
Communication Protocol	CAN(Custom Serial port)
Throttle signal isolated Mode	Customizable Throttle Isolation
Firmware Upgrade	Support
Digital Throttle	Support(CAN)
PWM Input Signal Level	5V/3.3V
Throttle Signal Frequency	50-500Hz
Operating Pulse Width	1100-1940μS
Throttle Travel Calibration	NO
Double Throttle Signal	Support(CAN and PWM)
Propeller Positioning	Optional
Failure Storage	2-48 hours real-time data and fault data, real-time up to ms level
Waterproof Rating	IP55(Custom IP67)
Weight（Without Cable）	87g

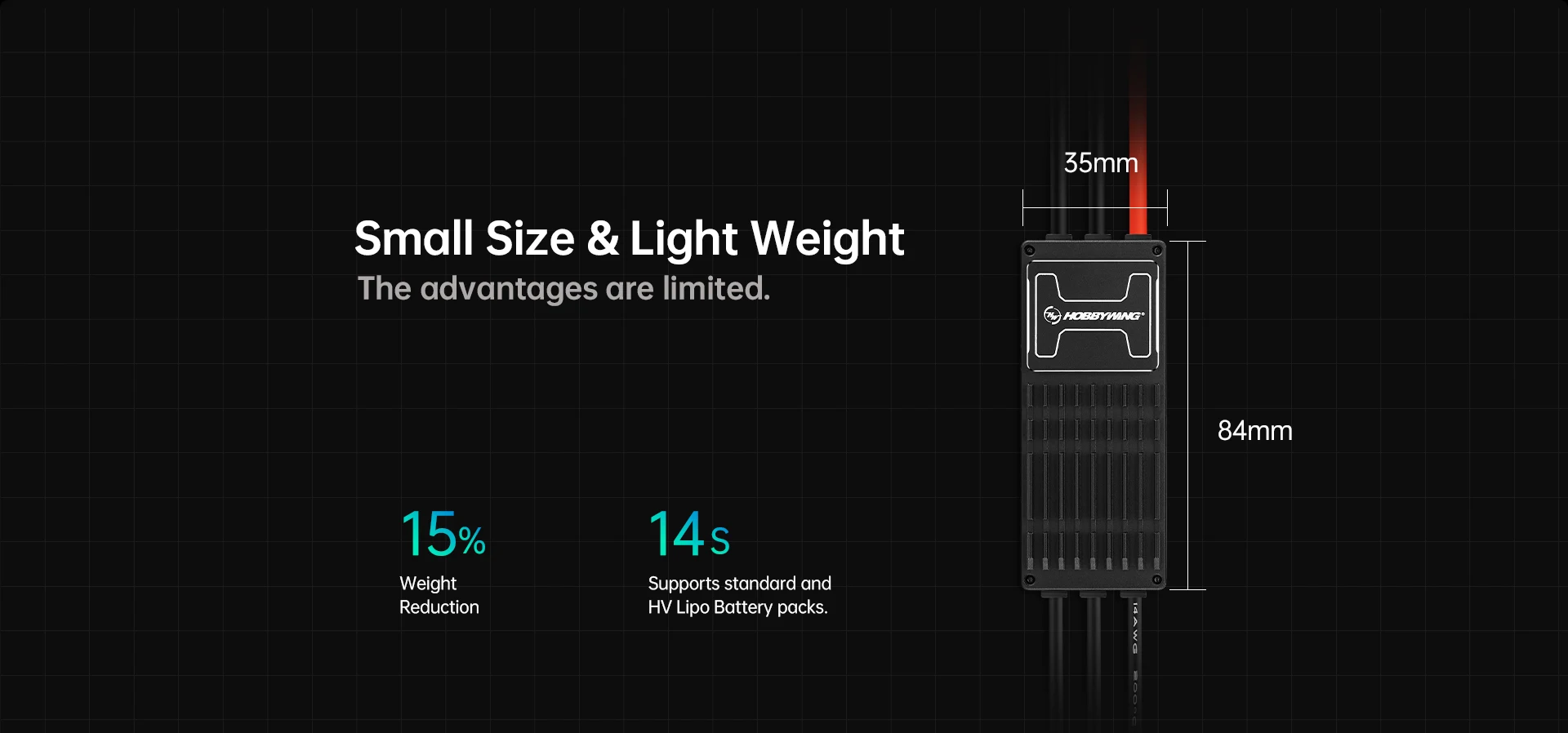

Size	843520mm

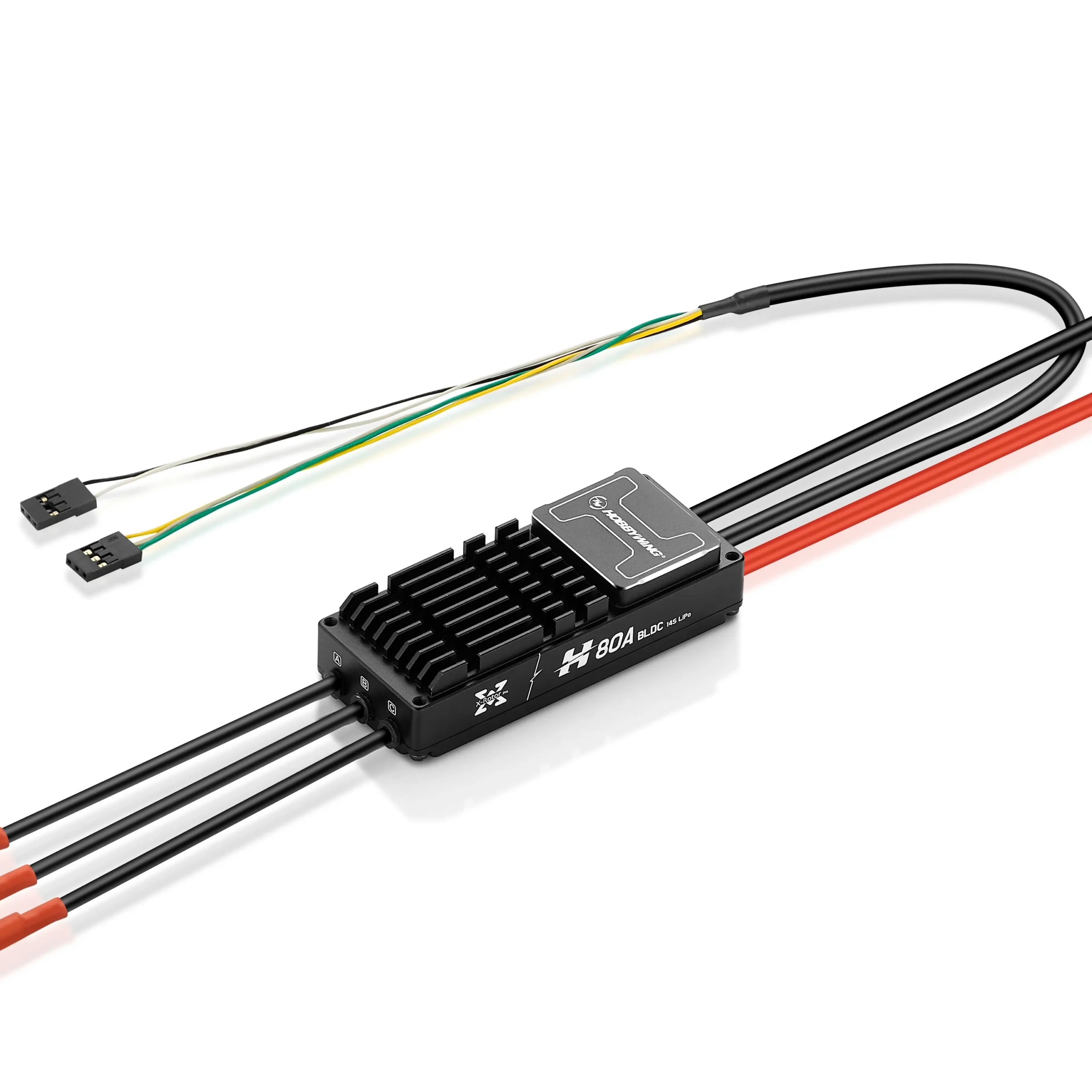

Cable Specification	Input: Silicone cable-12AWG-180mm 2 Output: Silicone cable-14AWG-100mm 3 Signal: Shielded cable – 5pin – 450mm * 1, JR-3Pin male connector * 2
DataLink Version	DataLinkBox G3

Model	H80A-14S-BLDC, H80A-14S-BLDC with IPC
