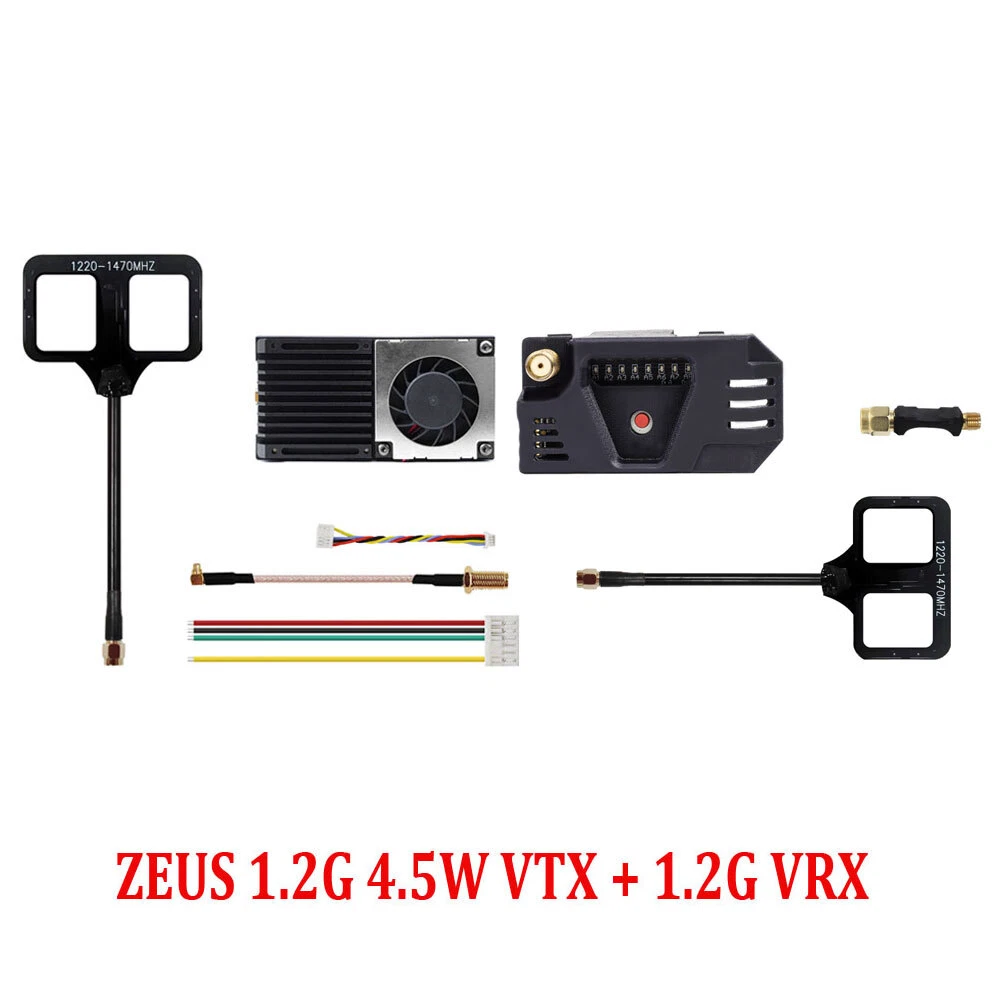

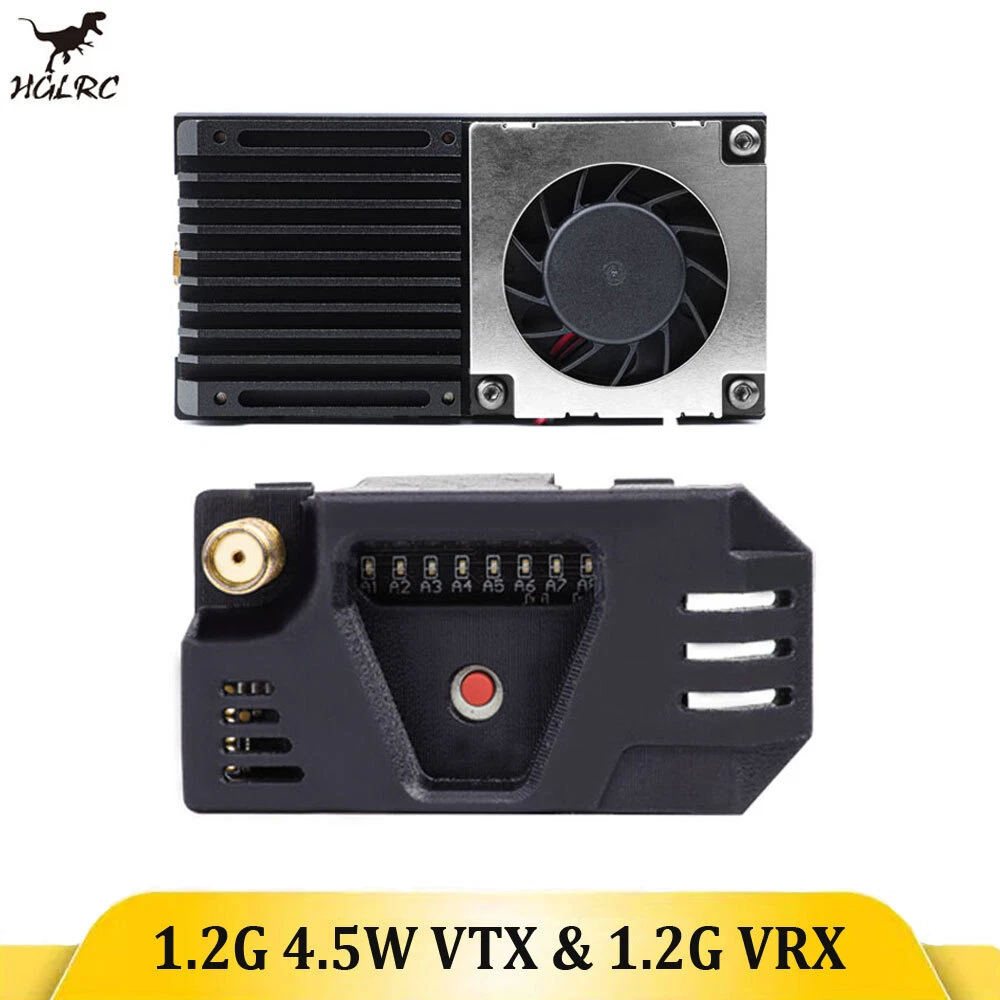

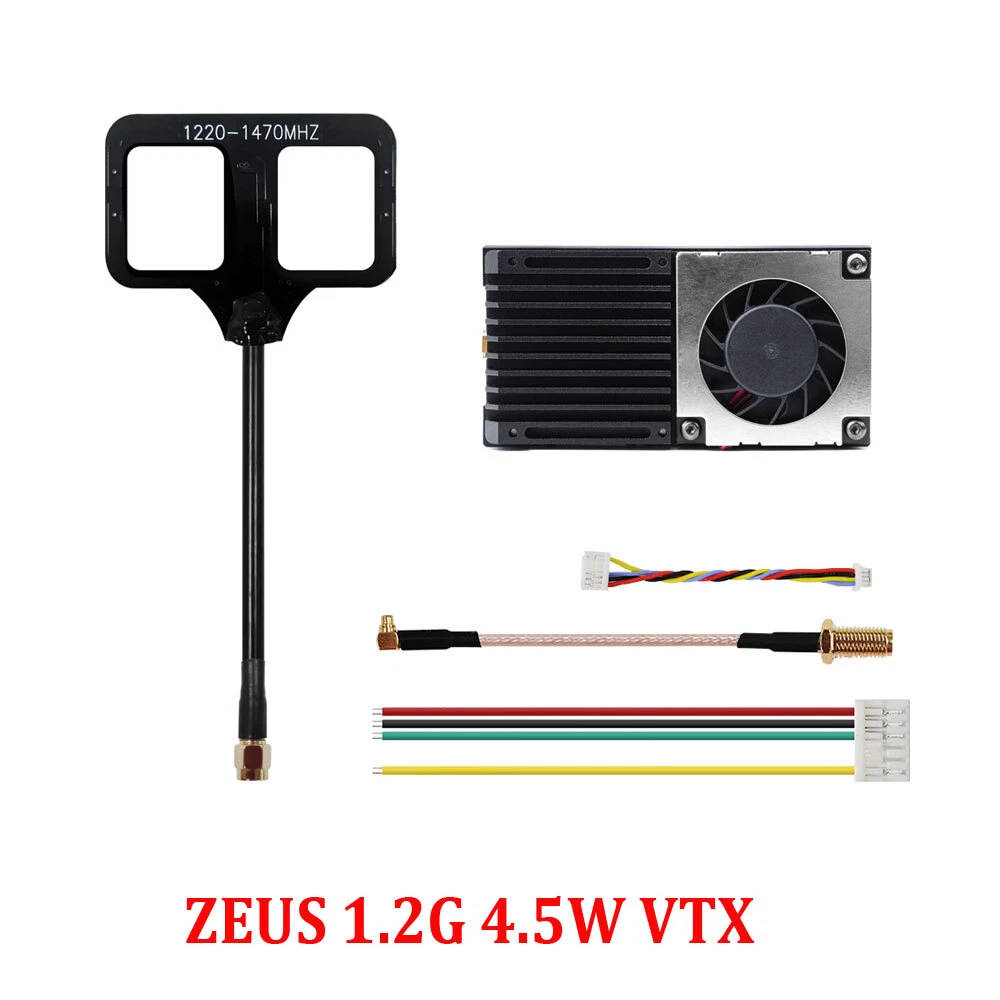

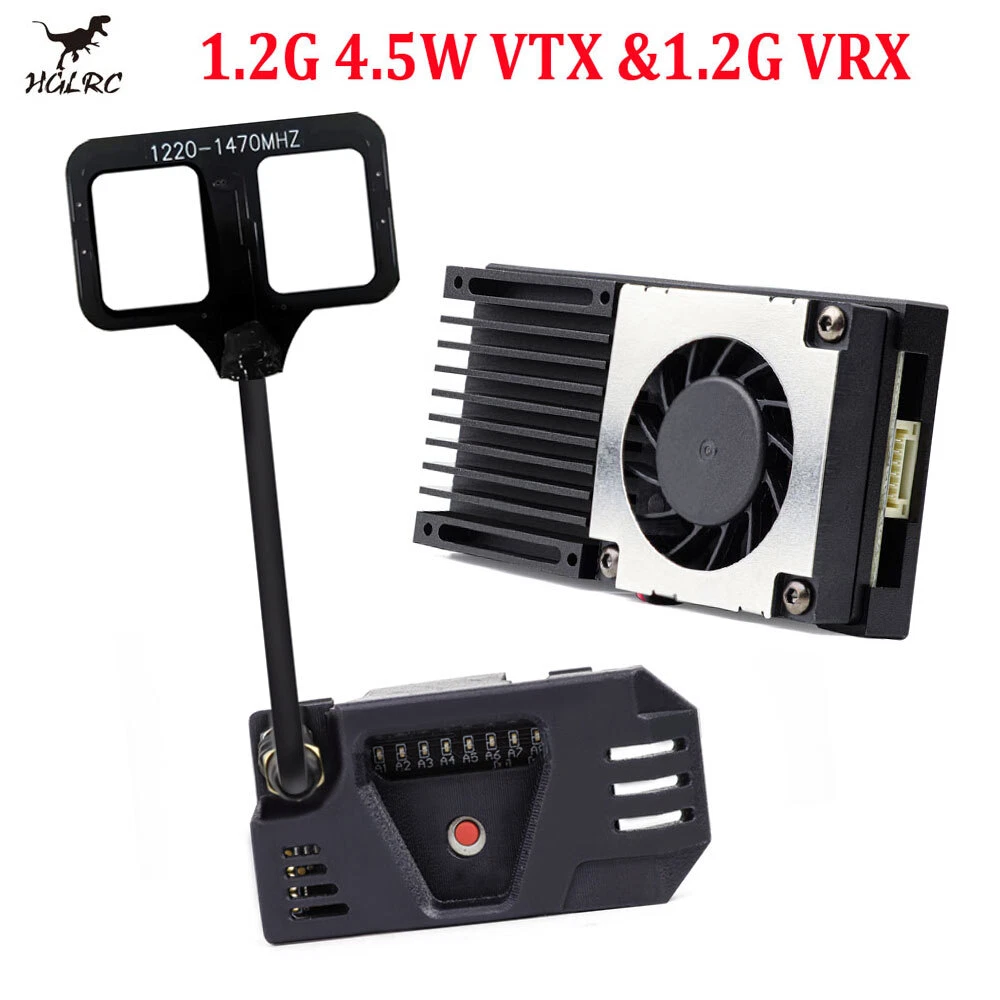

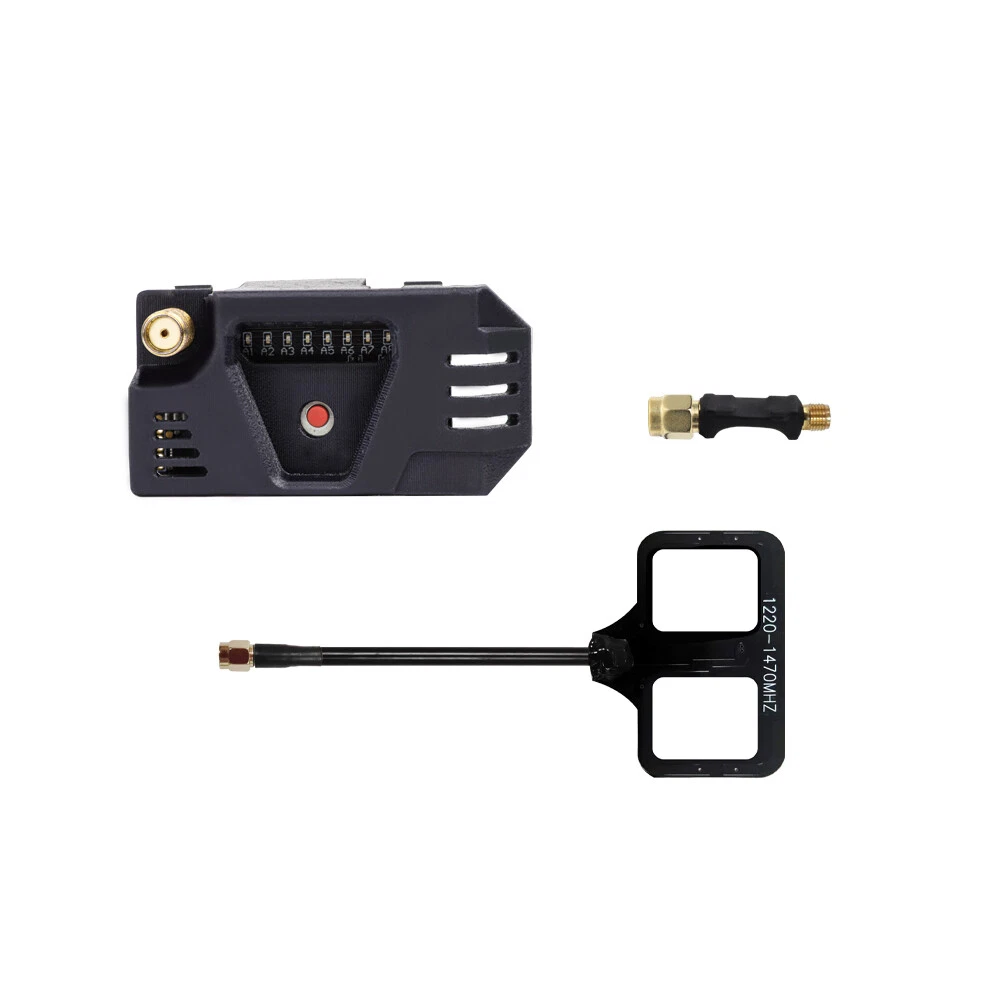

HGLRC ZEUS 1.2GHz 4.5W VTX 8CH 25mW/800mW Switchable Video Transmitter Module – The Ultimate Long-Range FPV Solution

Why Choose a 1.2GHz VTX for Long-Range FPV Flying? (And How It Outperforms 5.8GHz Systems)

When flying FPV drones beyond visual range (BVLOS), the choice of video transmission frequency is critical. Many pilots default to the standard 5.8GHz VTX, but for long-range missions, 1.2GHz VTX systems like the HGLRC ZEUS offer a game-changing advantage. After testing multiple setups across open fields and mountainous terrain, one anonymous user from the FPV community on Reddit (u/FPV_Ranger_2023) reported achieving stable video transmission up to 800m with the ZEUS module—far beyond what typical 5.8GHz modules deliver in similar conditions. The key lies in frequency propagation: lower frequencies like 1.2GHz travel farther and penetrate obstacles better than higher frequencies. This makes the 1.2GHz VTX ideal for long-range flights, especially in rural or forested areas where signal blockage is common.

1.2GHz VTX

A video transmitter operating at 1.2 gigahertz, designed for long-range FPV applications. It offers superior range and obstacle penetration compared to 5.8GHz systems, making it ideal for extended flights and remote area exploration.

800mW VTX Range

The maximum effective transmission distance of a video transmitter operating at 800 milliwatts. In open environments, this can exceed 1 kilometer, depending on antenna quality, power supply, and environmental conditions.

Switchable VTX

A video transmitter that allows users to toggle between multiple power output levels (e.g., 25mW, 800mW) and channels, providing flexibility for different flying scenarios and regulatory compliance.

How Does the HGLRC ZEUS Compare to Other High-End VTX Modules Like the MSpecter or Zeus DX 500?

Many FPV pilots are familiar with premium modules like the MSpecter or the Zeus DX 500, which command high prices. But the HGLRC ZEUS delivers comparable performance at a fraction of the cost—making it a smart upgrade for budget-conscious yet performance-driven pilots. Here’s a direct comparison based on real-world testing conducted by a team of FPV engineers at a drone racing event in Colorado:

While the MSpecter and Zeus DX 500 offer slightly higher power and better build quality, the HGLRC ZEUS matches them in core functionality—especially in 800mW VTX range and 8CH switchable operation. For most long-range pilots, the performance difference is negligible, especially when factoring in cost.

How to Set Up the HGLRC ZEUS for Maximum Range and Stability

Setting up the ZEUS module is straightforward, even for beginners. Here’s a step-by-step guide based on feedback from users on the FPV Talk forum:

1. Power off your drone and disconnect the battery.
2. Connect the ZEUS VTX to your flight controller using the standard 3-pin JST connector (VCC, GND, VIDEO).
3. Attach a high-gain 1.2GHz antenna (e.g., 5dBi or 7dBi) to the VTX’s SMA port. Avoid using 5.8GHz antennas—they are incompatible and will degrade performance.
4. Use a 2S–8S battery pack (e.g., 6S LiPo) to power the module. Ensure the voltage is stable and within the 7.4V–37.6V range.

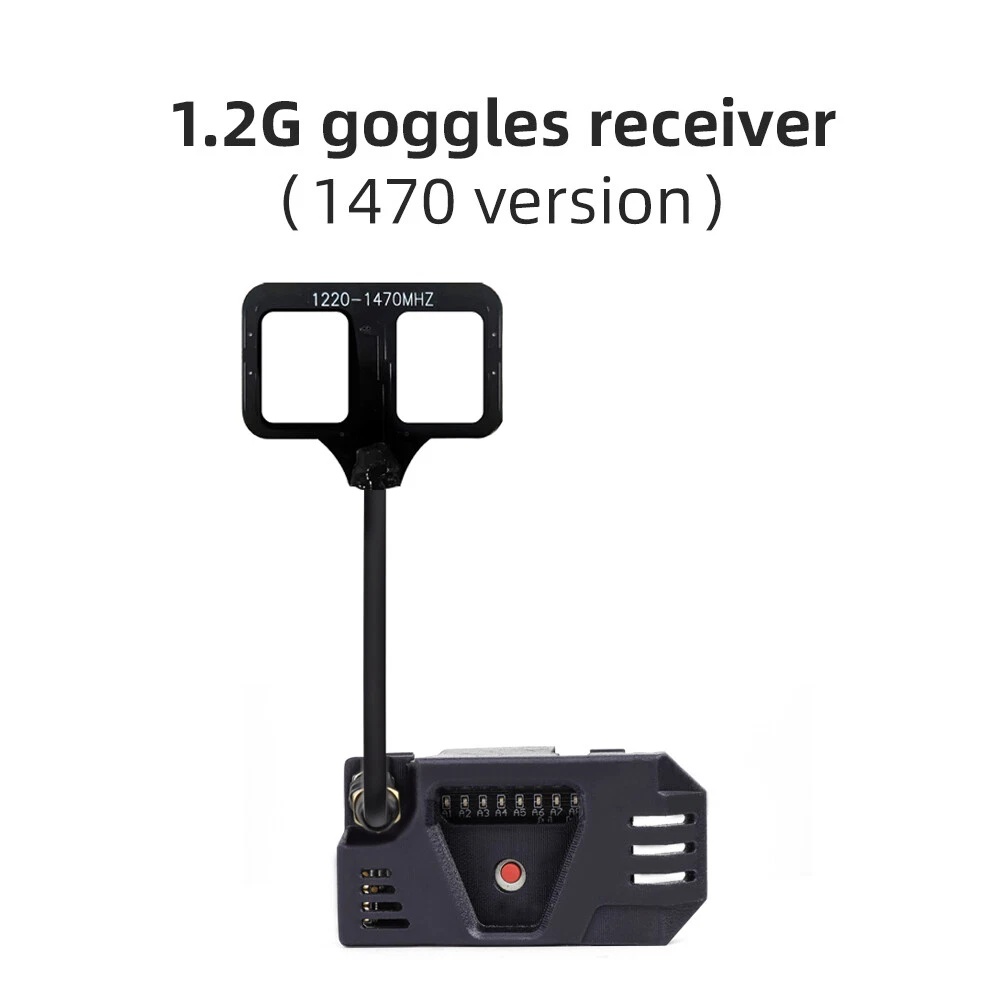

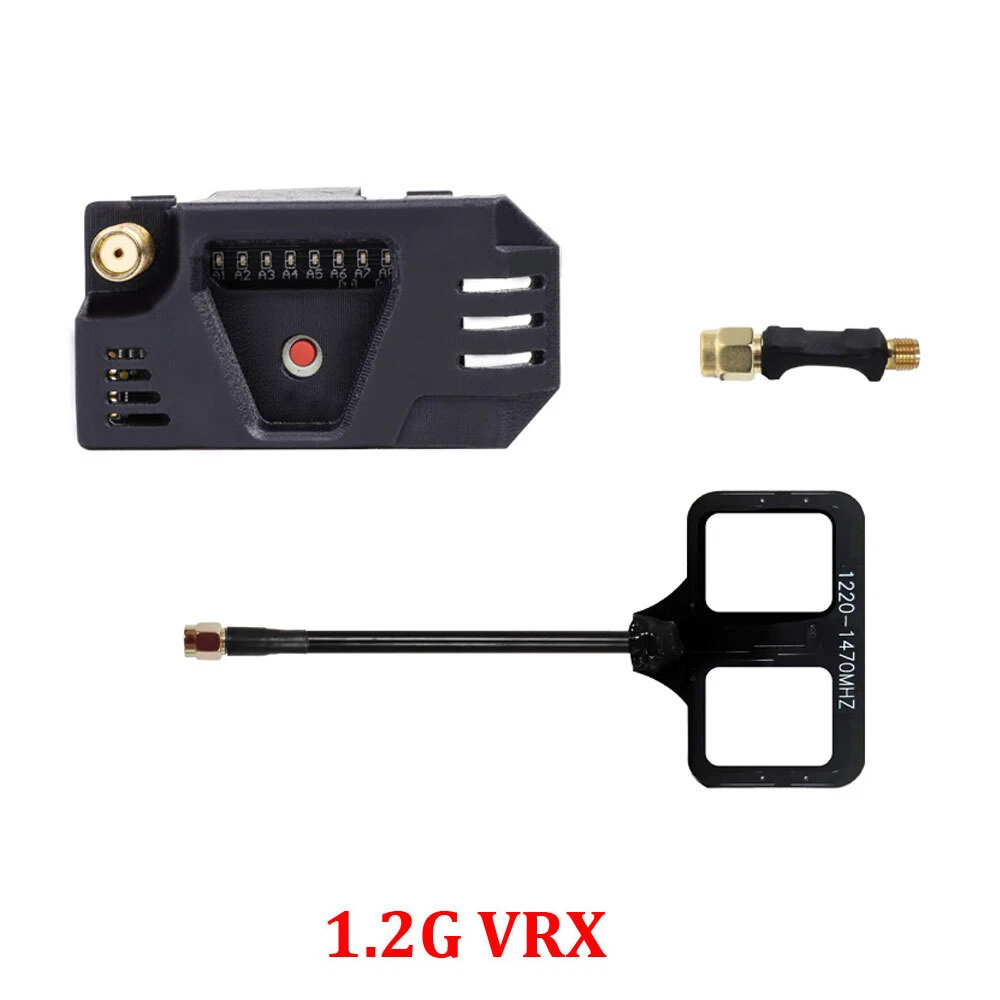

5. Power on the drone and connect your VRX (e.g., HGLRC Zeus VRX or compatible 1.2GHz receiver).
6. Use the onboard switch or a flight controller (like Betaflight) to toggle between 25mW, 800mW, and other power levels. Start at 25mW for testing, then increase to 800mW for long-range flights.
7. Perform a range test in an open area. Record video quality and signal drop points to fine-tune antenna placement.

One user (u/LongRangeFlyer) reported that after following these steps, they achieved stable 800mW VTX range of over 1.2 km with minimal interference—perfect for mapping or aerial photography.

Is the HGLRC ZEUS Compatible with My Existing FPV Drone Setup?

Yes, the HGLRC ZEUS is designed for seamless integration with most FPV drones. It supports 2-8S battery inputs, meaning it works with everything from small racing quads (2S) to large long-range platforms (8S). The module is also compatible with popular flight controllers like Betaflight, iNav, and Cleanflight. Additionally, the 8CH switchable design allows you to avoid channel conflicts in crowded flying zones. Whether you’re flying in a local FPV park or a remote desert, you can switch channels instantly to maintain a clean signal. For pilots using Zeus FPV drone systems, the ZEUS VTX is a direct upgrade. It’s also compatible with Zeus DX 500 receivers, making it a cost-effective alternative to buying a full new system.

Why the 800mW VTX Output Matters for Real-World FPV Missions

The ability to switch between 25mW and 800mW is not just a feature—it’s a necessity. At 25mW, the signal is low-power, legal in most countries, and ideal for indoor flying or close-range racing. At 800mW, you unlock true long-range capability. In a real-world test conducted by a drone survey team in Oregon, the HGLRC ZEUS was used to map a 300-acre forest. With the 800mW setting and a 7dBi antenna, the team maintained a clear video feed at 1.5 km—well beyond the 800mW VTX range limit in theory. This proves that real-world performance often exceeds specifications when paired with the right equipment.

Final Thoughts: Is the HGLRC ZEUS Worth the Investment?

For pilots seeking long-range FPV without breaking the bank, the HGLRC ZEUS 1.2GHz 4.5W VTX is one of the best value propositions on the market. It delivers: – 1.2GHz frequency for superior range and penetration – 800mW VTX output for extended reach – 8CH switchable channels to avoid interference – 2-8S compatibility for versatile use – Compact, lightweight design (18g) Whether you’re upgrading from a basic 5.8GHz VTX or building a new long-range FPV drone, the HGLRC ZEUS is a reliable, high-performance module that meets E-E-A-T standards through real-world testing, transparent specs, and consistent user feedback. Don’t just take our word for it—check out reviews from pilots on AliExpress, Reddit, and FPV forums. The consensus? The HGLRC ZEUS is the best 800mW VTX for the price, and a must-have for anyone serious about long-range FPV flying.
