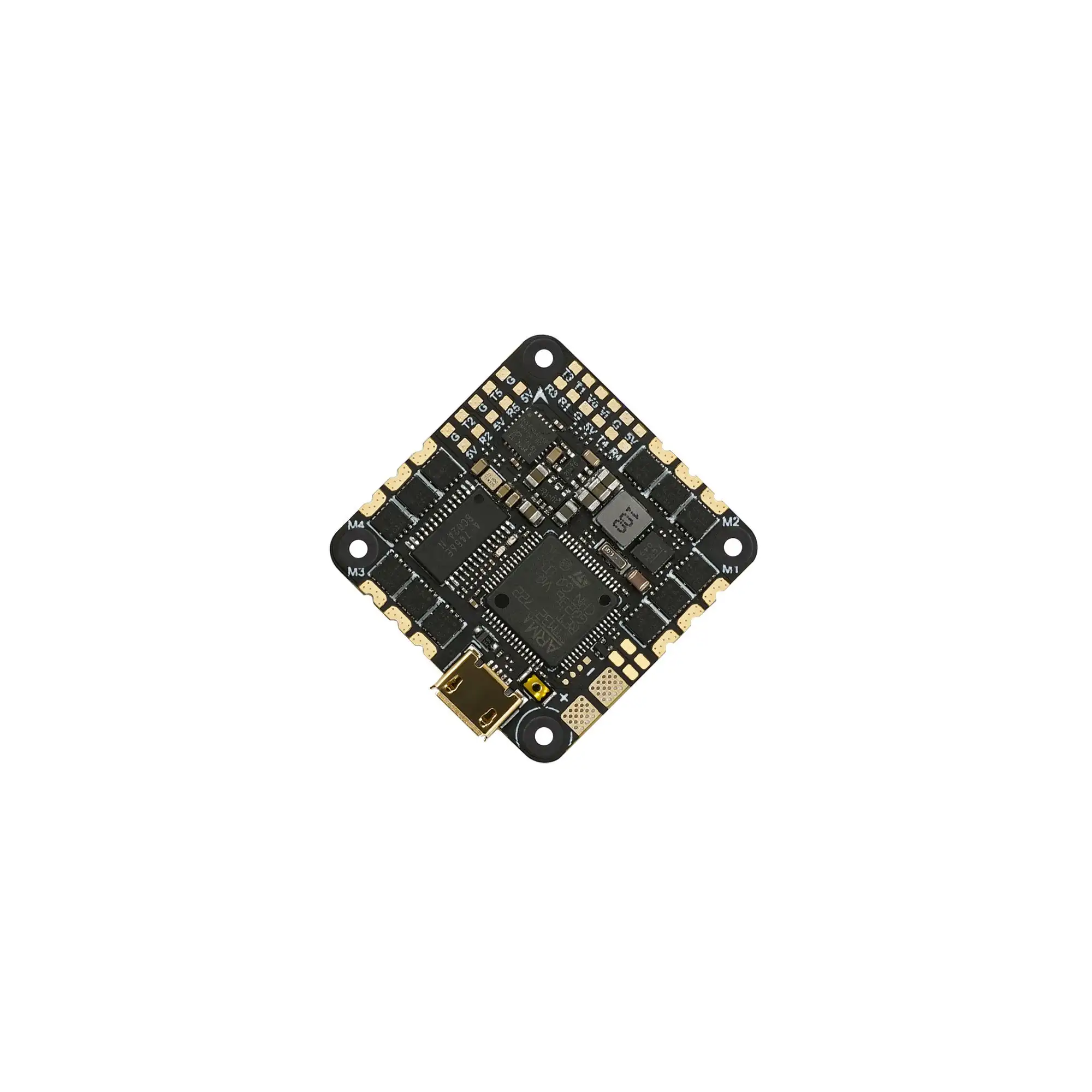

GEPRC GEP F722 45A AIO V2

Summary：

I am glad to introduce a new member of GEPRC FC AIO,GEP-F722-45A AIO, it is released now.

GEP-F722-45A AIO adopts MCU STM32F722,which has powerful performance and higher computing speed.It has 5 full UART ports and can connect more external devices.

We designed a 6-pin connector for DJI AIR UNIT MODULE,plug and play.

The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.It can support OSD parameter adjustment, buzzer, led and other functions. It is 8.8g ultra light weight, and 25.5mm * 25.5mm mounting hole, suitable for most of the frames on the market.

We pursue lighter weight, smaller volume, more functions and better performance Flight controller.

Changelog:

June 5th, 2022: this flight controller has started to use a new MOS tube, the appearance has changed, but the performance is the same as before.

June 14th, 2022: Gyro updated to 42688

June 25th, 2022: Mounting Hole Size changed from 26.5×26.5mm to 25.5×25.5mm.

Specification：

• Model Name: GEP-F722-45A AIO V2
• MCU: STM32F722
• IMU: 42688 gyro/accelerometer(SPI)
• Firmware target: GEPRC_F722_AIO
• OSD: Betaflight OSD w/ AT7456Ev
• UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
• Beeper: YES
• LED: YES
• USB: Micro USB
• BEC output: 5V@1A
• Intergrated LC Filter
• ESC MCU: 8BB21F16G
• Continuous current: 45A
• MAX current: 55A (10s)
• Input: 2~6S
• Supports: Dshot600,Oneshot,Multishot
• BlackBox: 16Mb
• Traget: G_H_30
• Size: 32x32mm Board

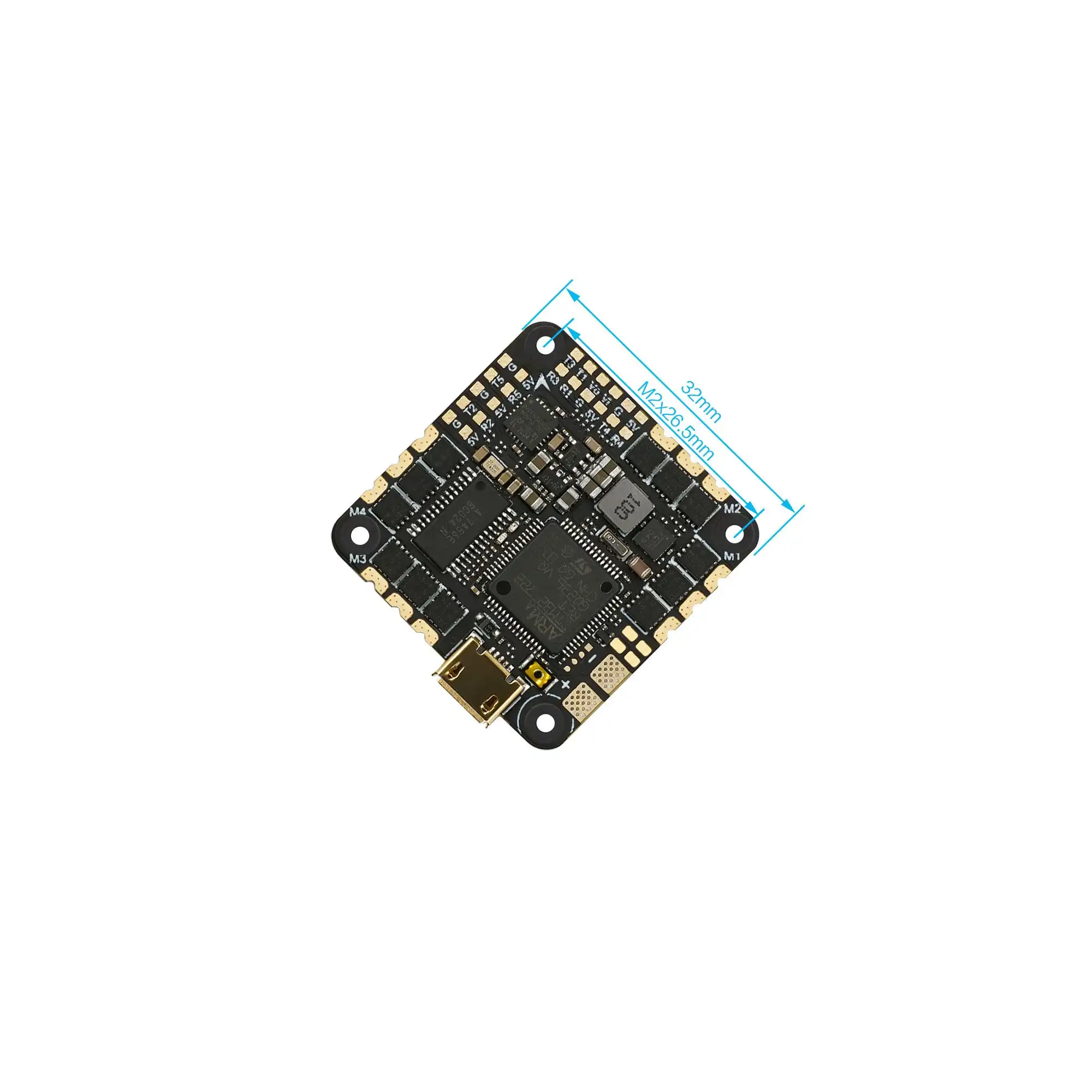

• Mounting Hole: 25.5×25.5mm

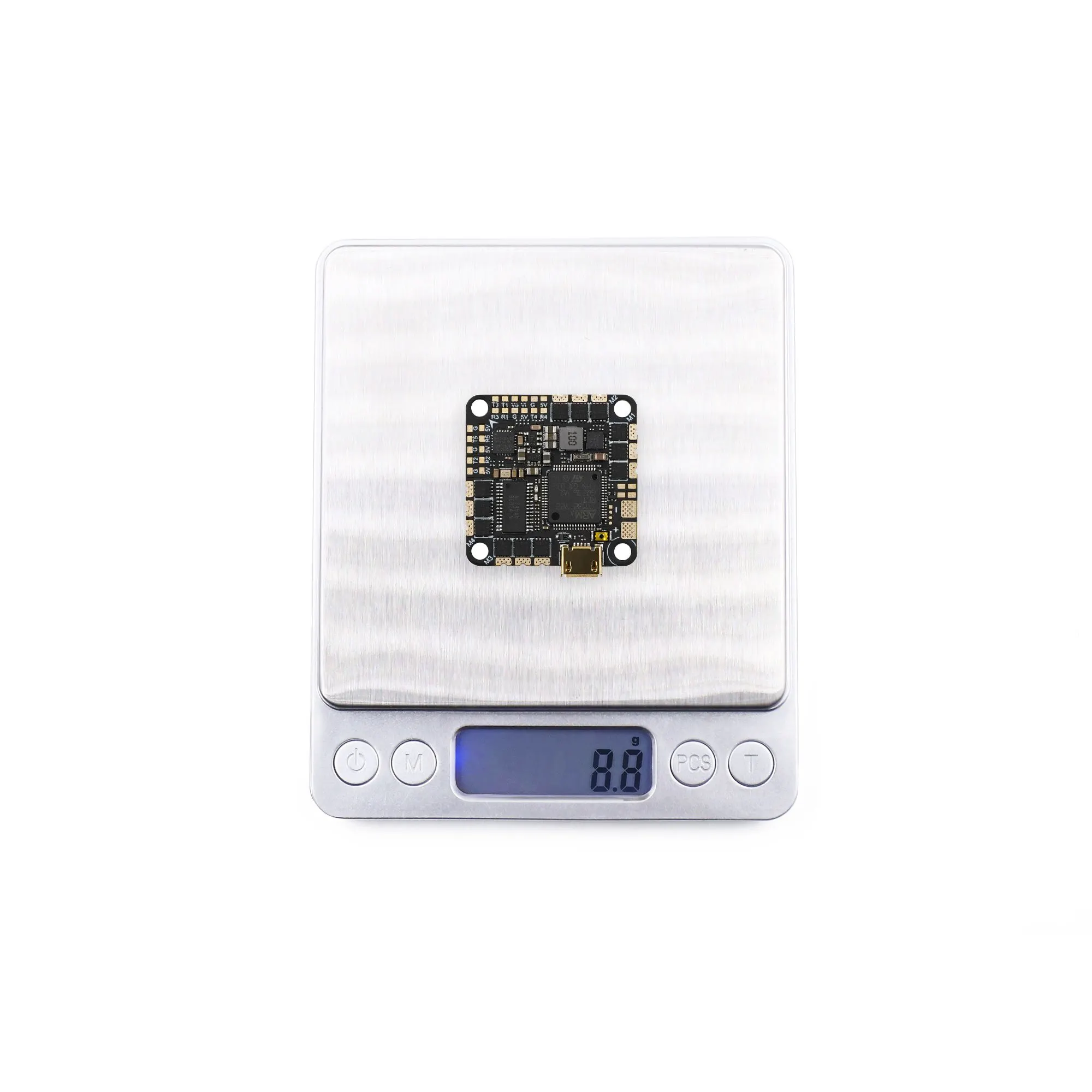

• Weight: 8.8g

Features:

• MCU:STM32F722,with strong performance and higher computing speed.
• It has 5 full UART ports, which can connect more external devices
• Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .
• The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally support the 2-6S lipo battery, which can bring the drone a stronger flight performance.
• Support OSD parameter adjustment, buzzer, led and other functions.
• 8g ultra light weight
• 5mm * 25.5mm mounting hole, suitable for most frames

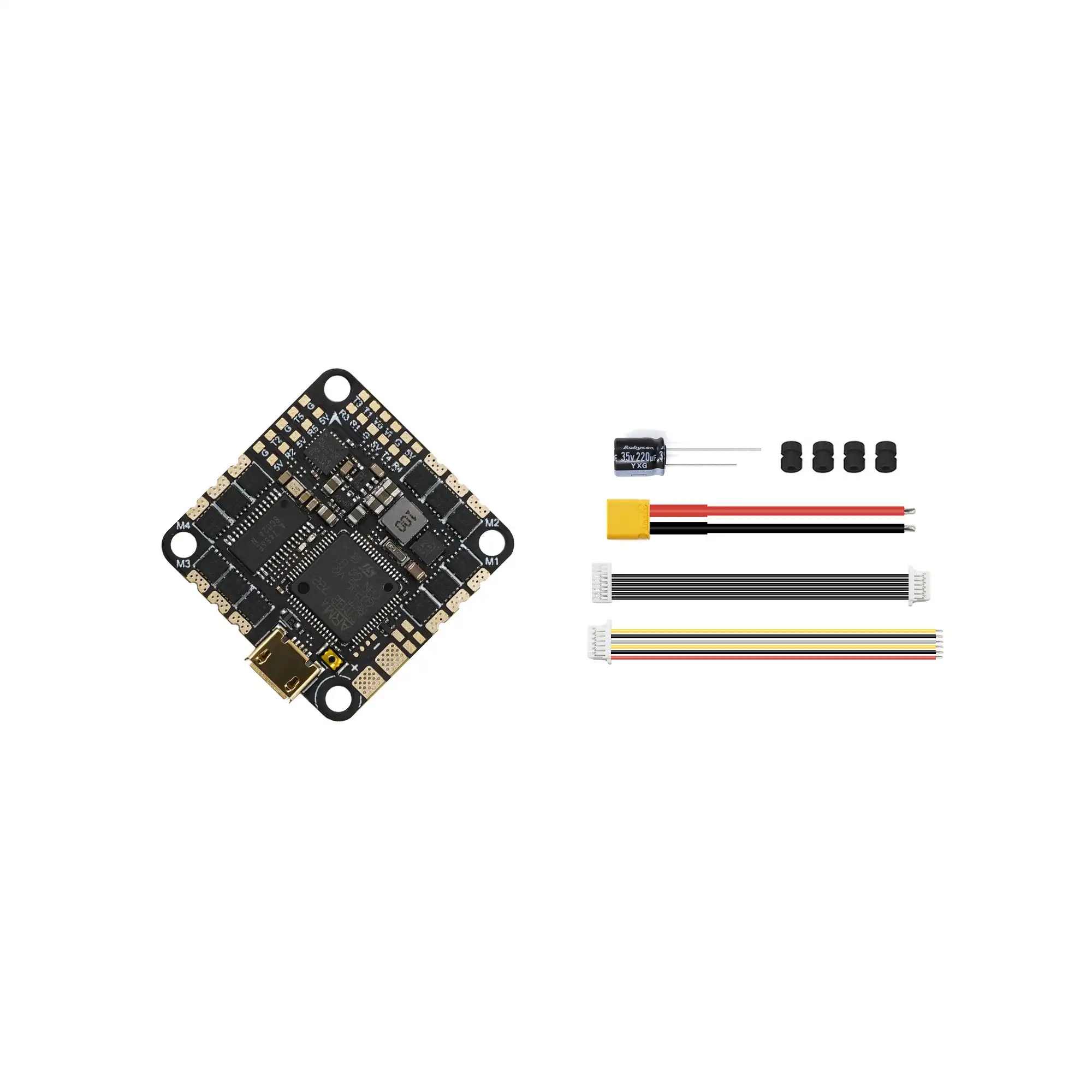

Includes:

• 1 x GEP-F722-45A AIO V2
• 1 x XT30-7CM-18AWG Power cables
• 1 x 35V220UF capacitor
• 1 x SH1.0-6Pin to GH1.25-8Pin cables
• 8 x M2*6.5mm Damping rings

Manual:

GEP-F722-45A AIO USER MANUAL.pdf
