CaddxFPV Infra V2 Camera

18,999.00

An ultra-lightweight analog FPV camera optimized for infrared sensitivity and stealth performance. Perfect for low-light and night flying missions.

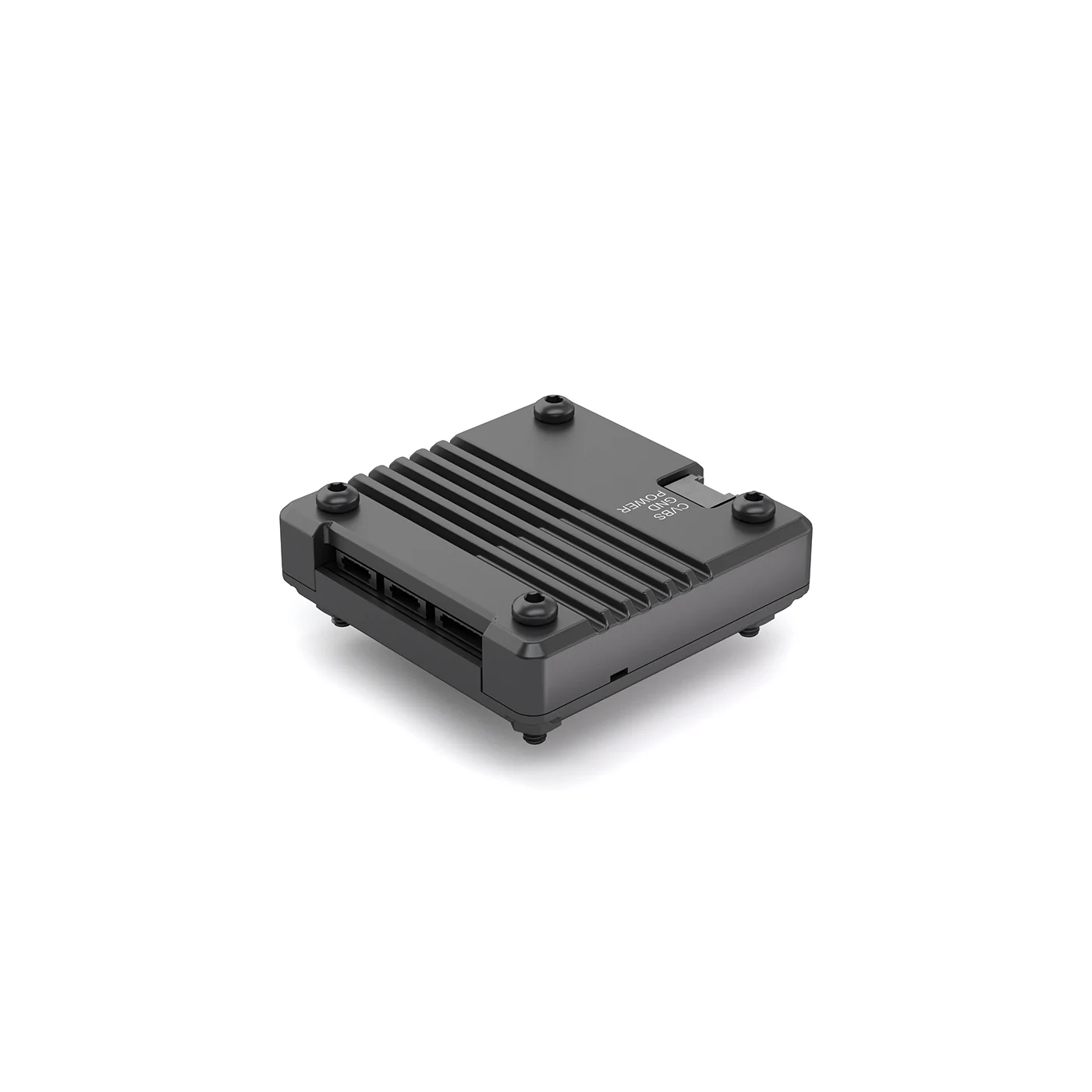

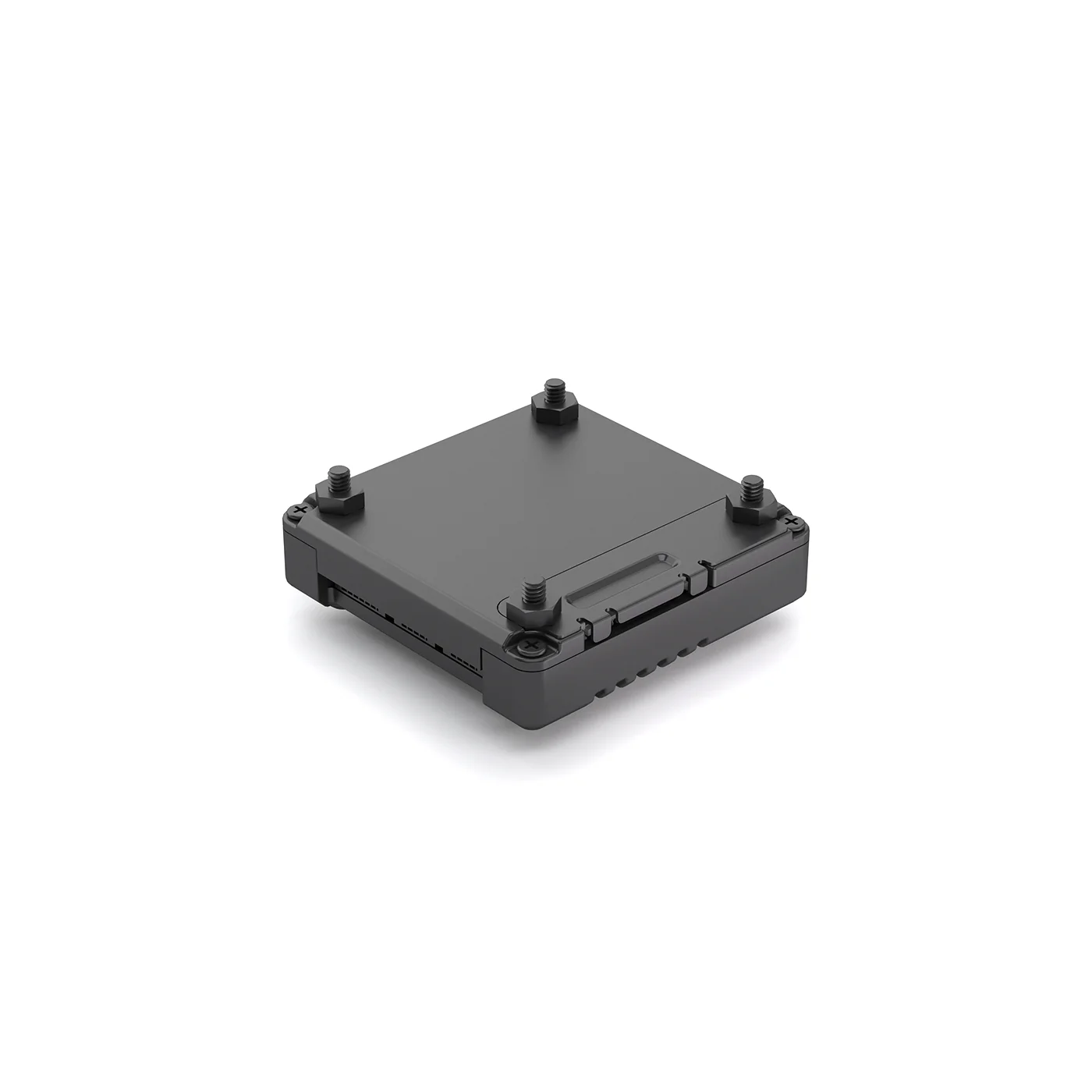

Note: The box shown in the image is an image enhancement module, not a VTX. A separate VTX is required for transmission.

Availability: 1 in stock

Category: Tags: , Brand:

Features:

●New V2 AI Image Enhancement ●High Resolution
●Reduced Size and Dimensions ●Black and White Sensor

Bullet Points:

1. Powered by the new Infra V2 AI night vision enhancement algorithm, it boosts image clarity by more than 30% in low-light conditions. The upgraded AI processing chip also enables a more compact processor module, making the device thinner and lighter than ever.

2. Using AI multi-frame algorithms to enhance dynamic range during night vision, effectively suppressing overexposure/underexposure in backlit scenes and preserving full image details. Compared to traditional color cameras, its sensitivity is much improved, allowing for better capture of object shapes and contours.

3. The image sensor outputs in a native 4:3 aspect ratio, providing a full, uncropped image with sharp pixel clarity, letting you fully immerse in every flight moment with unmatched visual precision.

4. Supports WDR, 100% satisfying the pursuit of detailed shooting in dark environments.

5. Designed with a 131.6° ultra-wide-angle lens, the Infra V2 camera offers FPV pilots an expansive real-time view, improving situational awareness, enhancing image clarity, and capturing immersive, true-to-life visuals during every flight.

6. Featuring a metal case, the lightweight design improves durability and heat dissipation. Utilizing a brand-new optical design to reduce lens size while ensuring the same light intake as Infra V1, making installation easier.

Q: When will it be shipped?
A: In order to give pilots a better experience. Currently, each order will be shipped within 5 working days.

Q: Does this include VTX?
A: No, Infra V2 is an analog system and does not include the VTX.

Specification

Model Caddx Infra V2
Image sensor 1/1.8 inch
Pixel size
8μm
Horizontal resolution 1500TVL
Focal length 2.8mm
Aperture F1.0
FOV 131.6°(D)
Output format CVBS PAL
Frame rate 50fps
Image quality Black&White
Video interface 1xPAL
Supply Voltage 9~24V
Typical Power Consumption <1.2W
Aspect ratio 4:3
Operating temperature -20℃~60℃
Dimensions Camera: 20.5×20.5×26.9mm
AI Box: 34x34x13.2mm

Model Caddx Infra V1
lmage sensor Black&White Sensor
Horizontal Resolution 1500TVL
FOV 120°
Ratio 4:3
Min.lllumination 0 Lux
WDR Super WDR
LENS M16/F1.0/2.8mm
Frame Rate 50/60fps
Power Consumption <1.5W
Supply Voltage 9V~24V
Output PAL
Analog Interface CVBS
Latency Average Latency 20ms
lmage Quality Allmage Enhancement
