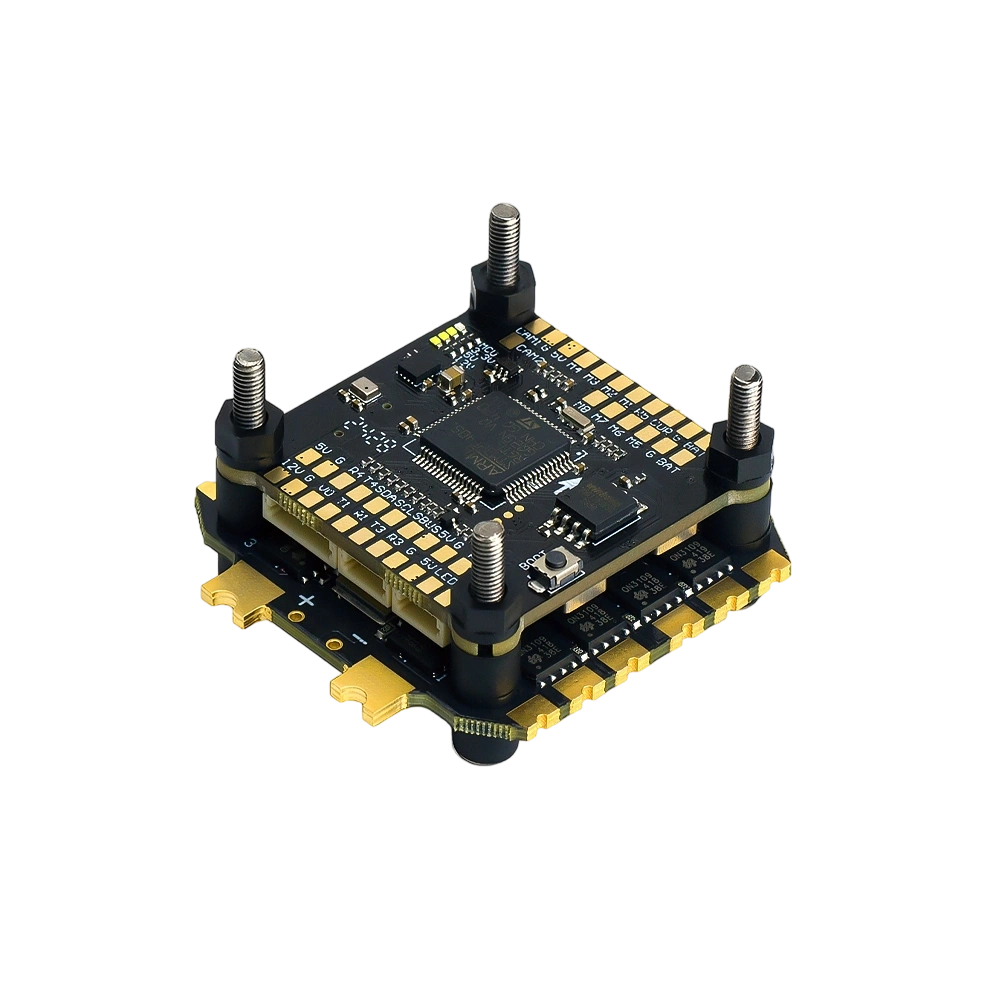

Argus ECO 60A/55A STACK 4–6s

Foreword

Feature

• Ultra-lightweight open-board design, lighter than Argus PRO
• F405 high-performance processor + ICM42688P gyro
• Dual BEC: 5V3A / 12V2A, supports HD VTX direct plug-in
• 4-way motor output, easy to build 4-axis drone
• Status LED for quick working status check
• Support HD / Analog VTX, GPS, LED, buzzer
• Standard 30.5×30.5mm mounting, universal for most frames

Recommended Configuration

• Stack: Argus ECO F405 + 55A / 60A ESC
• Input Voltage: 4–6S LiPo
• FC: F405 (STM32F405RGT6)
• ESC: 55A/60A continuous, 65A/70A burst
• Mount: 30.5×30.5mm M3
• Application: 4–6S 5-inch FPV, freestyle, racing

Specifications

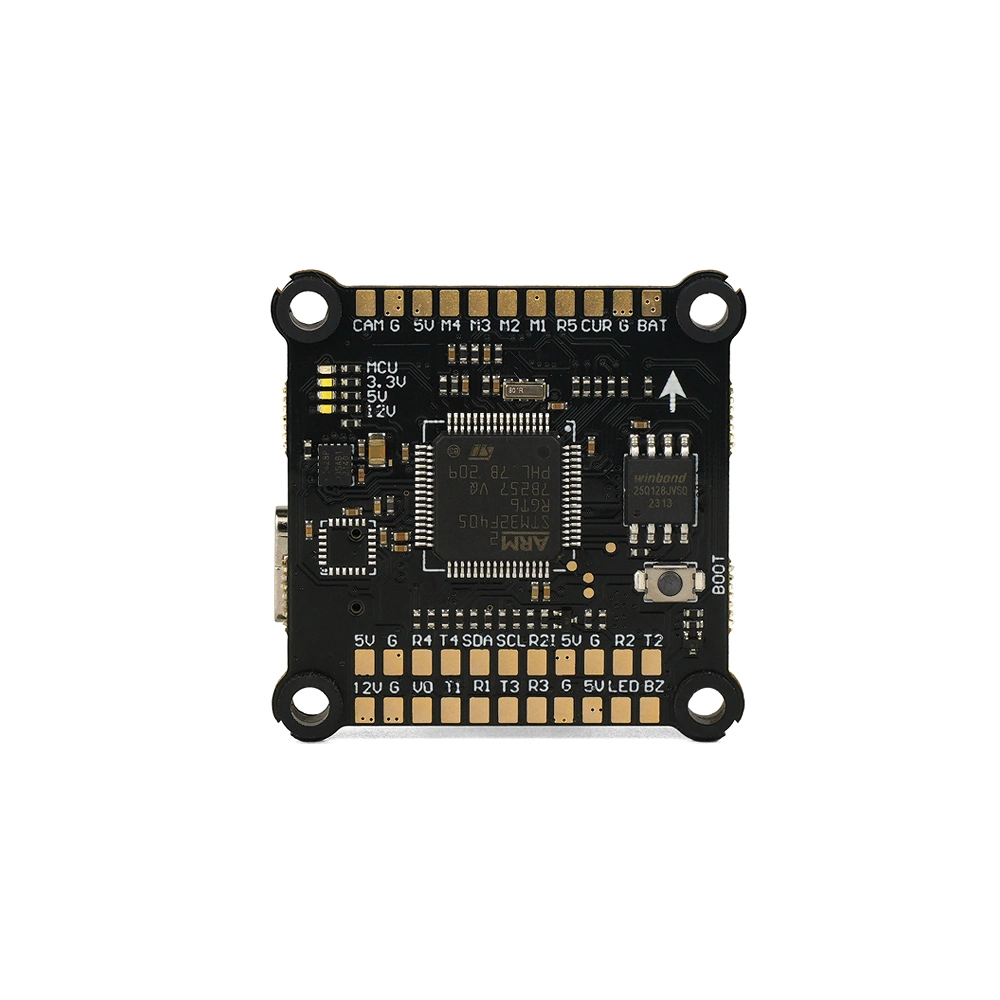

Flight Controller: Argus ECO F405

• Firmware: SPDX-SPEDIX F405 (Betaflight)
• MCU: STM32F405RGT6
• Gyro: ICM42688P
• Barometer: Supported
• Blackbox: 16M
• Input Voltage: 4–8S
• BEC: 5V3A / 12V2A
• UART: 5 sets
• OSD: Supported
• Size: 36×36×6mm
• Mount: 30.5×30.5mm M3
• Weight: 7g

ESC: Argus ECO 55A / 60A

55A Version

• Firmware: Bluejay_QH30
• Input Voltage: 4–6S LiPo
• Continuous Current: 55A
• Burst Current: 65A
• Ammeter: 200
• Temperature Protection: Supported
• Telemetry: Not supported
• BEC: Not supported
• Size: 44.8×43×6mm
• Mount: 30.5×30.5mm M3
• Weight: 13.5g

60A Version

• Firmware: Bluejay_QH30
• Input Voltage: 4–6S LiPo
• Continuous Current: 60A
• Burst Current: 70A
• Ammeter: 200
• Temperature Protection: Supported
• Telemetry: Not supported
• BEC: Not supported
• Size: 44.8×43×6mm
• Mount: 30.5×30.5mm M3
• Weight: 13.5g

Package Contents

1. Connecting cable ×1
2. M3×30 screws ×4
3. M3 locknuts ×4
4. 35V 1000uF capacitor ×1
5. Rubber damping rings ×8
6. XT60 power cable ×1
7. Receiver cable ×1
8. HD VTX cable ×1
9. Analog cable ×1
10. LED & buzzer cable ×1
