Introducing the new and improved Albatross V2.1 antenna! With upgraded welding technology and a unique rugged design, this antenna is now lighter, sturdier, and more reliable than ever. Upgrade your equipment today with the Albatross V2.1 antenna.
Use RP-SMA LHCP (Left Hand Polarization) for DJI Digital FPV! Default antennas are LHCP and Goggle Antennas are LHCP, both sides need to match!
July 17, 2025: The product is upgraded to version 2.1, using LDS technology, and has more stable performance than V2.

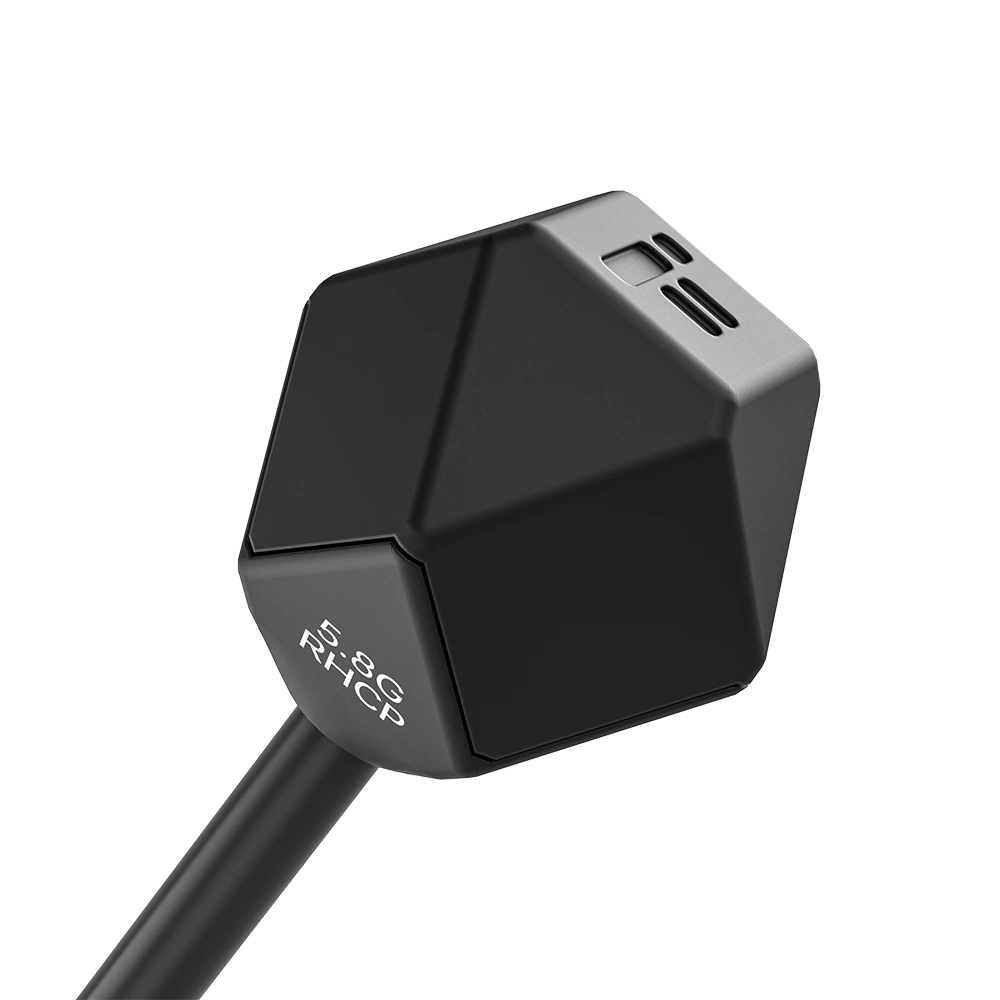

A hexagonal shape for enhanced durability and a right-angle design for convenient fixation.
Utilizes ultrasonic welding technology to ensure a lightweight yet secure antenna attachment.
Achieves higher consistency in antenna gain, thereby improving device performance and stability.

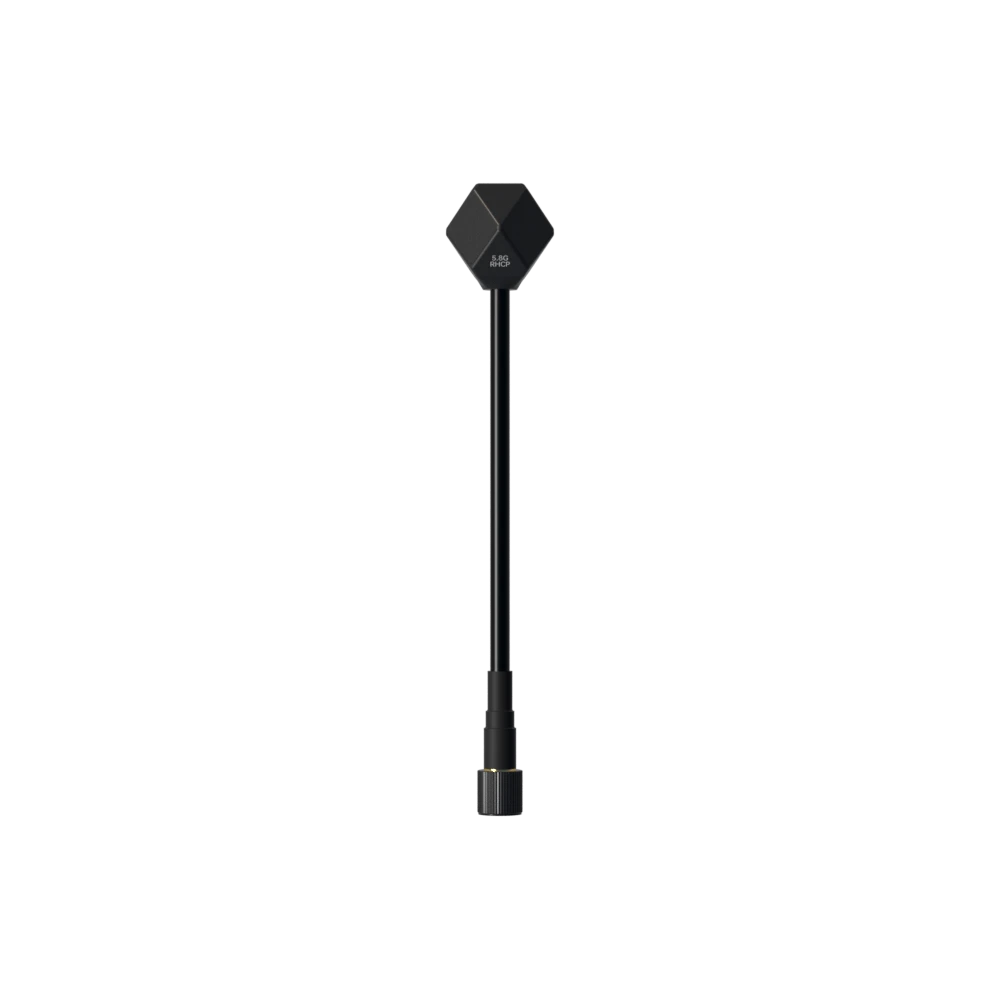

For 130mm
Model: Albatross 5.8GHz RHCP SMA FPV Antenna
Interface: RHCP SMA
Frequency range: 5.3GHz-6GHz
Max Gain: 2.85dBi (5695MHz)
MIN Gain: 2.9dBi (5362MHz)
AVG Gain: 2.9dBi
MAX VSWR: 1.76（6000MHz）
MIN VSWR: 1.20（5300MHz）
AVG VSWR: 1.48
MAX radiation efficiency: 68.77%（5700MHz）
MIN radiation efficiency: 65.17%（5300MHz）
AVG radiation efficiency: 66.51%
Polarization: RHCP
Cross polarization suppression: -25dB
Axial Ratio：≤3
Cable: RG141
Weight: 10.5±0.5g
Size: Total length: 130mm (±5mm)
Model: Albatross 5.8GHz LHCP RP-SMA FPV Antenna
Interface: LHCP
Frequency range: 5.3GHz-6GHz
Max Gain: 3.05dBi (5621MHz)
MIN Gain: 2.88dBi (5436MHz)
AVG Gain: 2.92dBi
MAX VSWR: 1.74（5700MHz）
MIN VSWR: 1.19（5300MHz）
AVG VSWR: 1.5
MAX radiation efficiency: 68.89%（5500MHz）
MIN radiation efficiency: 64.51%（5300MHz）
AVG radiation efficiency: 66.82%
Polarization: LHCP
Cross polarization suppression: -25dB
Axial Ratio：≤3
Cable: RG141
Weight: 10.5±0.5g

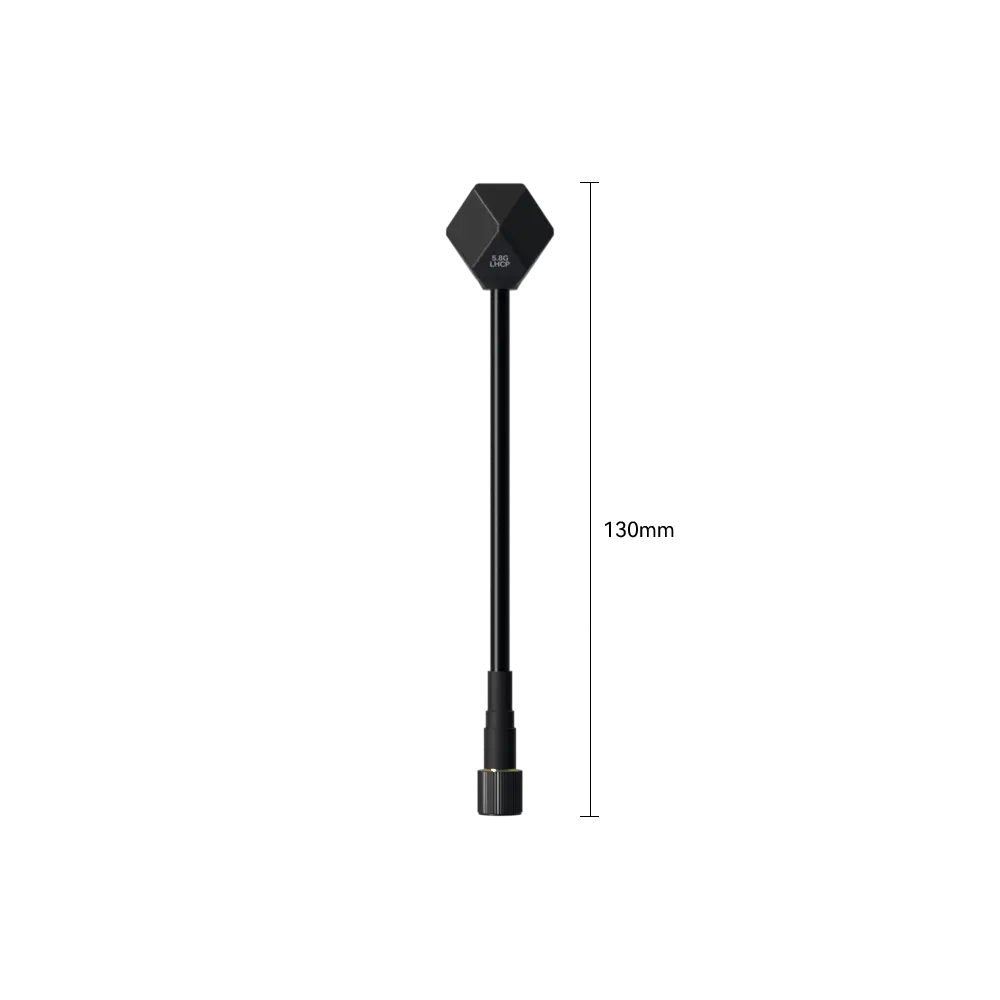

Size: Total length: 130mm(±2mm)
2 x Albatross V2.1 5.8GHz 100mm Antenna

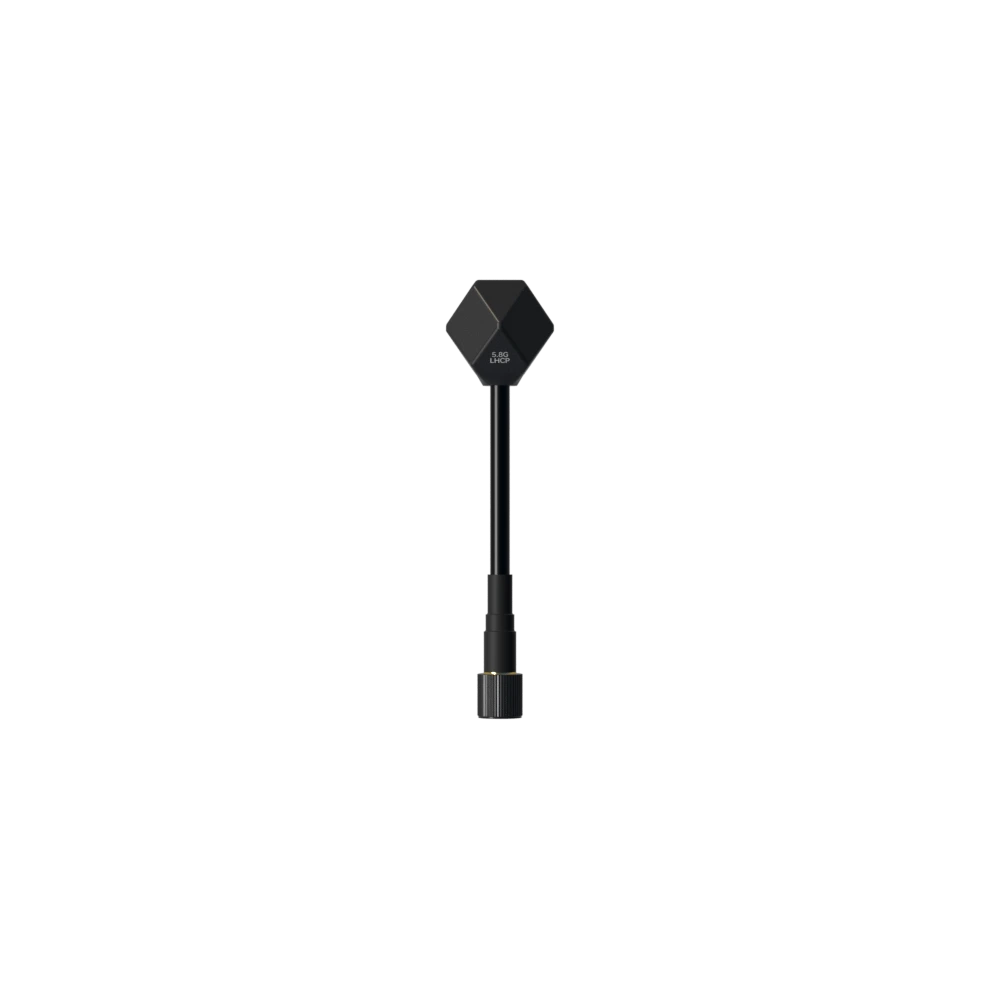

For 90 mm
Model: Albatross 5.8GHz RHCP SMA/RP-SMA FPV Antenna
Interface: RHCP SMA
Frequency range: 5.3GHz-6GHz
Max Gain: 3.02dBi (5500MHz)
MIN Gain: 2.85dBi (5700MHz)
AVG Gain: 2.9dBi
MAX VSWR: 1.76（6000MHz）
MIN VSWR: 1.20（5300MHz）
AVG VSWR: 1.48
MAX radiation efficiency: 68.77%（5700MHz）
MIN radiation efficiency: 65.17%（5300MHz）
AVG radiation efficiency: 66.51%
Polarization: RHCP
Cross polarization suppression: -25dB
Axial Ratio：≤3
Cable: RG141
Weight: 8.5g(RHCP SMA) / 12.2g(RHCP RP-SMA)
Size: Total length: 90mm(±2mm), cable length:60mm
Model: Albatross 5.8GHz LHCP RP-SMA FPV Antenna
Interface: LHCP
Frequency range: 5.3GHz-6GHz
Max Gain: 3.05dBi (5500MHz)
MIN Gain: 2.88dBi (5800MHz)
AVG Gain: 2.95dBi
MAX VSWR: 1.74 (5700MHz）
MIN VSWR: 1.19 (5300MHz）
AVG VSWR: 1.5
MAX radiation efficiency: 68.89%（5500MHz）
MIN radiation efficiency: 64.51%（5300MHz）
AVG radiation efficiency: 66.82%
Polarization: LHCP
Cross polarization suppression: -25dB
Axial Ratio：≤3
Cable: RG141
Weight: 8.5±0.5g
Size: Total length: 90mm(±2mm)
2 x Albatross V2.1 5.8GHz 90mm Antenna
