About this product

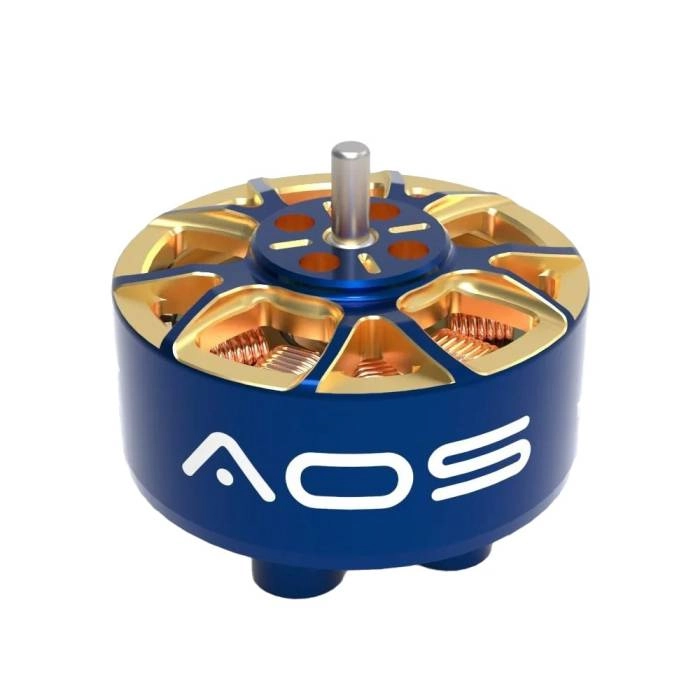

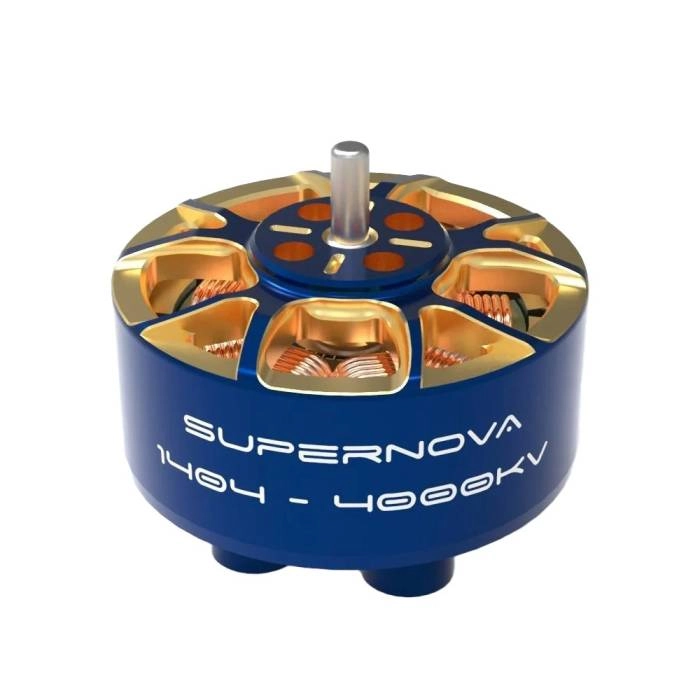

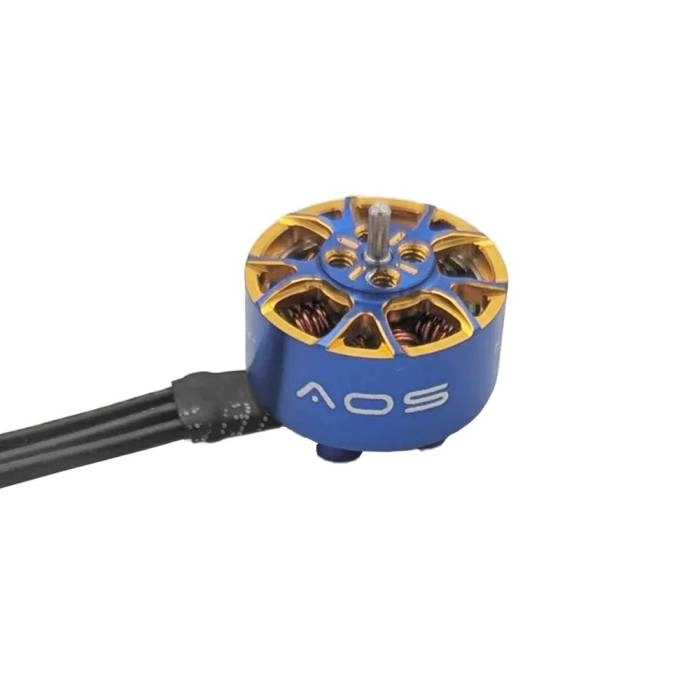

Unmatched performance for sub-250g 2.5-3” Cinewhoops and Freestyle quads with AOS RC Supernova 1404 FPV Motor – 4000KV. If you are seeking the ultimate performance for your sub-250g build, this is it. Built on the world-drone-speed-record-breaking technology of the AOS Supernova 3220, the AOS Supernova 1404 is engineered to deliver more torque, more power, and a more exciting flying experience than any 1404 before it.
VIDEO: Record breaking motor technology for Micro Quads: AOS Supernova 1404 and 1605
Features
- 25% More Thrust compared to similar 1404 motors
- 30% Better Torque from a thicker flux ring and fine-tuned magnet overhang
- Top Tier Efficiency
- Cris Rosser tuned and tested
The motor is optimized for driving 2.5” Bullnose or 3” Freestyle Tri-blade props on 4S battery voltage. On the thrust test stand and in the air, Chris Rosser found the Supernova 1404 outperforms any other 1404 motor he’s tested on the market, producing more thrust and a faster response without sacrificing efficiency. The Supernova 1404 broaches no compromises, delivering the smoothest footage on a Cinewhoop and also blowing away the competition in dynamic freestyle flying.
Built on the incredible success of the AOS Supernova 2207, 2807, and 3220 the 1404 takes the same revolutionary design philosophy and scales it down for the challenging demands of sub-250g drone pilots. Thanks to thousands of finite element simulations, including 4D field modeling for the first time, the Supernova 1404 delivers an exhilarating combination of control, power, and efficiency, all in service of the ultimate in-flight performance.

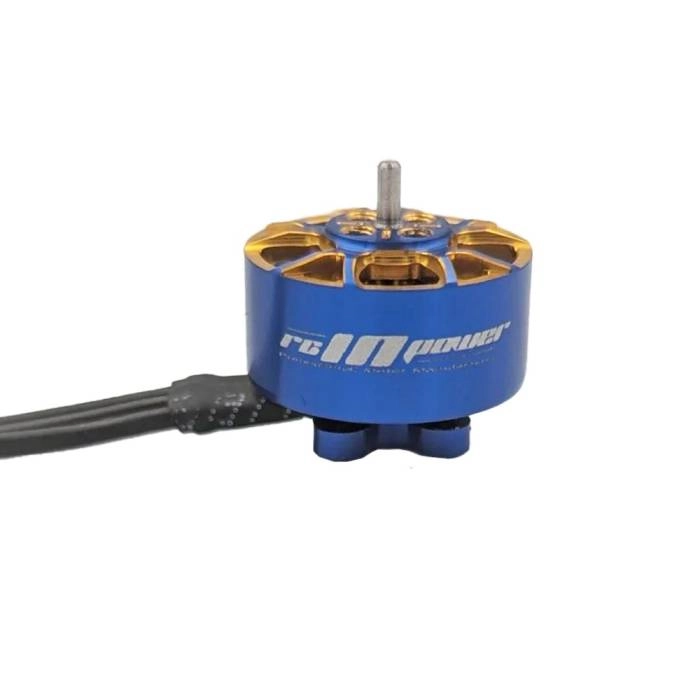

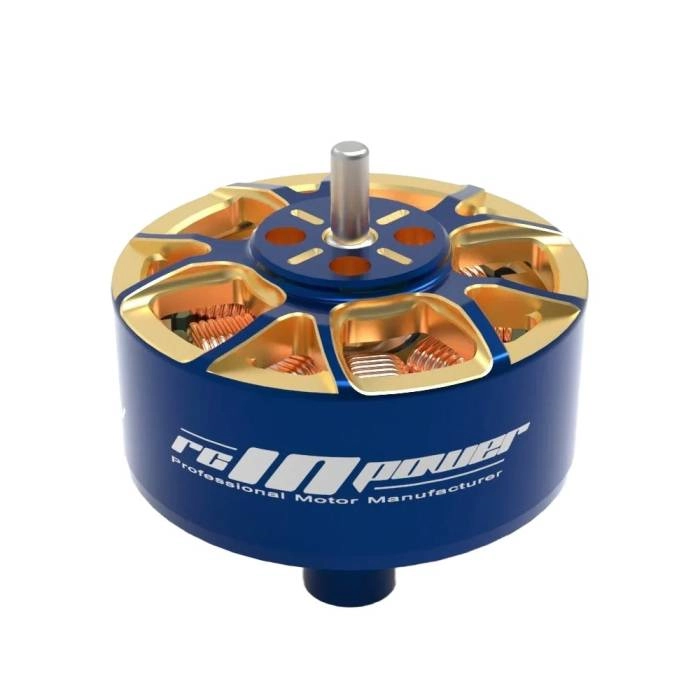

Exceptional designs require exceptional execution. That’s why the AOS Supernova 1404 is manufactured by RCinPower, a brand synonymous with race-winning and record-breaking motors. This partnership, coupled with AOS’s cutting-edge design approach, ensures that this motor not only meets but exceeds the expectations of the most demanding pilots. With the Supernova 1404, you can experience more than ever before, and still stay under 250g.
Specifications
- KV: 4000
- Configuration: 9N12P
- Stator Diameter: 14mm
- Stator Length: 4.5mm
- Shaft Diameter: 1.5mm ( 2mm inside)
- Motor Dimensions: 18.75*13.2mm
- Weight: 10.2g (3cm wire)
- Idle Current(10)@10V(A): 0.77
- Cells (LiPo): 3S-4S
- Max Continuous Power(W)3S: 335
- Max Current(3S): 20.9A
- Max Efficiency Current: (4-7A)>85%
Key Features
25% More Thrust
The optimized magnetic design of the Supernova 1404 gives a huge performance advantage on 2.5” and 3” props compared to other 1404 motors, while the moderate KV reduces motor heating at full throttle.
Top Tier Efficiency
Usually, more power comes at the cost of efficiency. The Supernova 1404 breaks this rule, trading blows with the most efficient 1404 motors available despite a 25% power advantage.
30% Better Torque
A thicker flux ring and fine-tuned magnet overhang deliver a 30% uplift in torque compared to other 1404 motors. This additional torque is particularly valuable on Cinewhoop drones with bullnose props which are heavier and require more torque to accelerate.
Highest Performing 1404
The Supernova 1404 is the highest performing 1404 motor Chris Rosser has ever tested by a substantial margin.
