1. Description
The kit is a revolutionary AI visual tracking system designed specifically for drones, integrating high-performance target
recognition, dynamic tracking, and anti-interference control. By integrating deep learning algorithms and high-performance smart chips, drones equipped with this kit can achieve automatic target acquisition, stable tracking, and precise tracking in complex
electromagnetic environments. It provides professional-grade intelligent tracking solutions for film and television creation,
outdoor sports, security inspections, emergency rescue, and other fields, which greatly reduces the operating threshold for pilots and greatly improves the efficiency of mission execution.
recognition, dynamic tracking, and anti-interference control. By integrating deep learning algorithms and high-performance smart chips, drones equipped with this kit can achieve automatic target acquisition, stable tracking, and precise tracking in complex
electromagnetic environments. It provides professional-grade intelligent tracking solutions for film and television creation,
outdoor sports, security inspections, emergency rescue, and other fields, which greatly reduces the operating threshold for pilots and greatly improves the efficiency of mission execution.

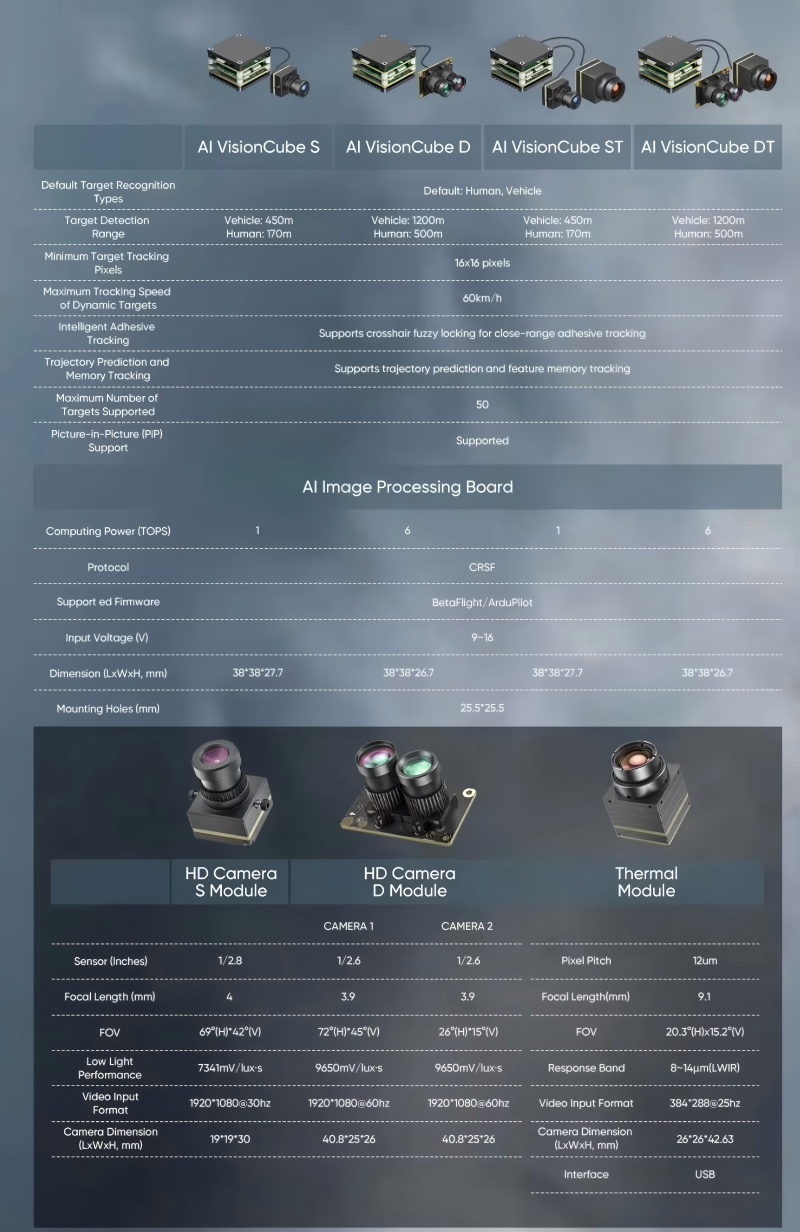

2. Specifications
|
Product Name
|
ED-VisionCube S
|
|
Default Target Recognition Types
|
Default: Human, Vehicle
|
|
Target Detection Range
|
Vehicle: 450m, Human:170m
|
|
Minimum Target Tracking Pixels
|
16×16 pixels
|
|
Maximum Tracking Speed of Dynamic Targets
|
60km/h
|
|
Intelligent Adhesive Tracking
|
Supports crosshair fuzzy locking for close-range adhesive tracking
|
|
Trajectory Prediction and Memory Tracking
|
Supports trajectory prediction and feature memory tracking
|
|
Maximum Number of Targets Supported
|
50
|
|
Picture-in-Picture (PiP) Support
|
Supported
|
|
AI Image Processing Board
|
|
|
Computing Power (TOPS)
|
1
|
|
Protocol
|
CRSF
|
|
Support ed Firmware
|
BetaFlight/APM
|
|
Input Voltage (V)
|
9~16
|
|

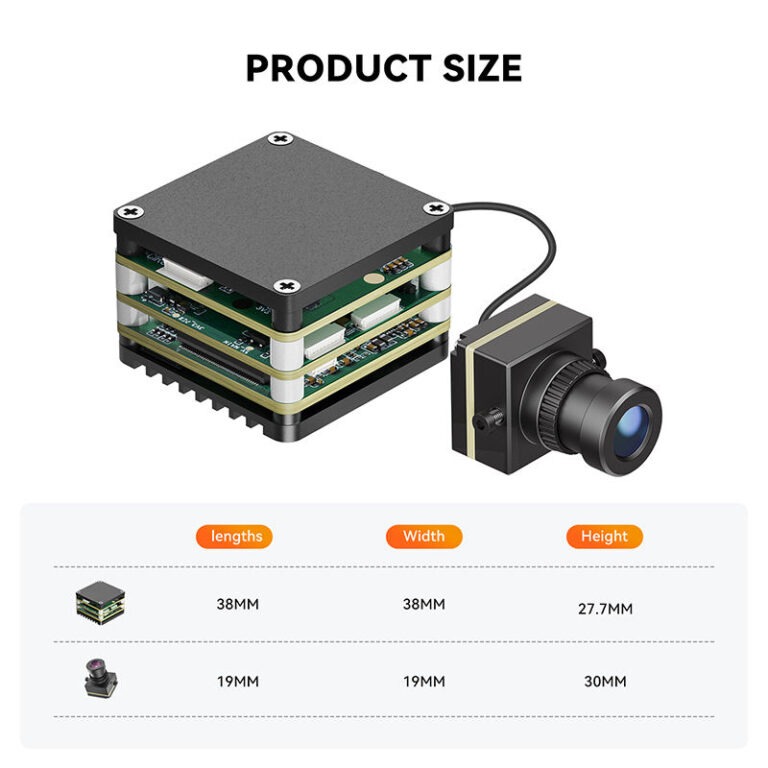

Dimension (LxWxH, mm)
|
38*38*26.7
|
|
Mounting Holes (mm)
|
25.5*25.5
|
|
High-Definition Camera D Module
|
|
|
High-Definition Camera S Module
|
|
|
Sensor (Inches)
|
1/2.8
|
|
Focal Length (mm)
|
4
|
|
FOV
|
69°(H)*42°(V)
|
|
Low Light Performance
|
7341mV/lux·s
|
|
Video Input Format
|
1920*1080@60hz
|
|
Camera Dimension (LxWxH, mm)
|
19*19*30
|
3. Features
